OB1 Main Main Program Sweep

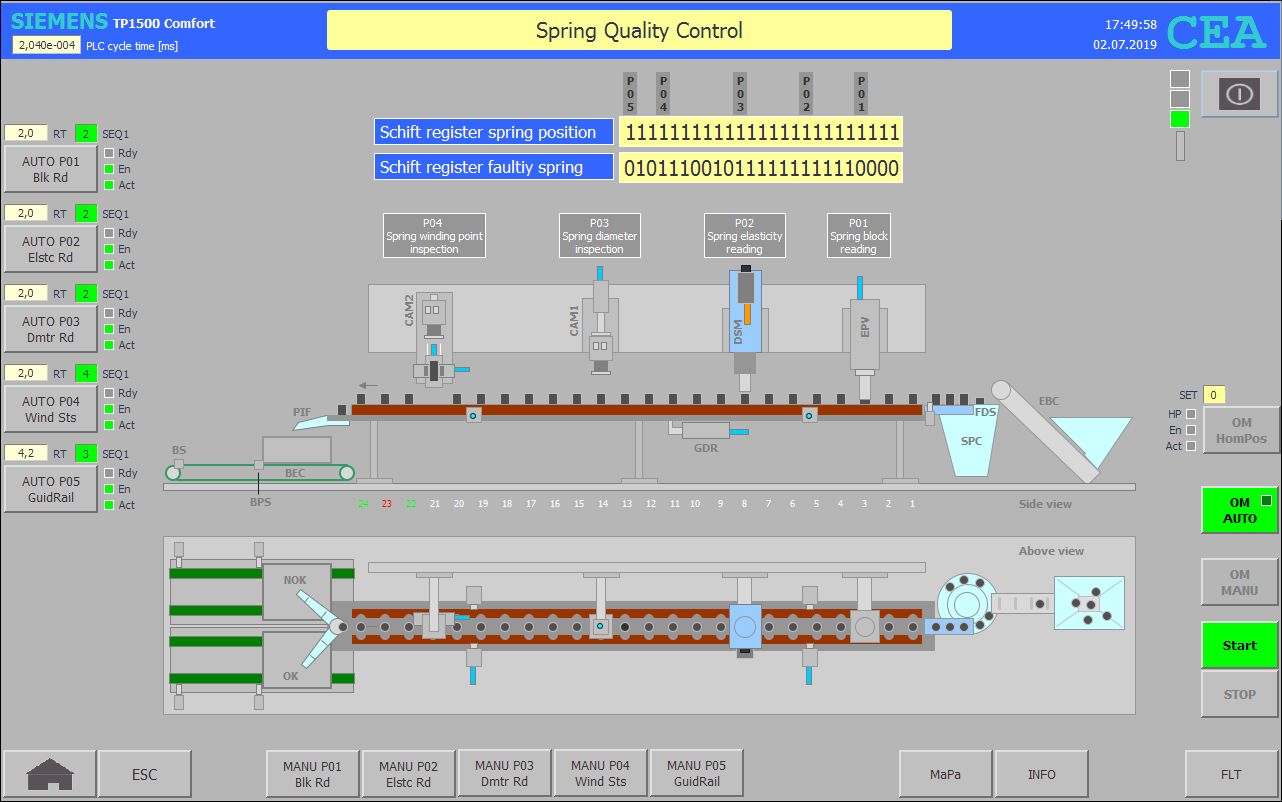

What you are seeing here is the whole plant consisting of 4-slave modules, and 1-master module.

1. Spring Block; 4-times proving spring quality at max force (slave 1 at index position 3)

2. Spring Elasticity; 4-times proving spring effectiveness after hardening process (slave 2 at index position 8)

3. Spring Diameter; camera - damage inspection (slave 3 at index position 14)

4. Spring Winding Point (both sides); camera - damage inspection (slave 4 at index position 21)

5. Feed, and guide rail; control the movement, and activity of guide, and feeding rail (master)

6. OK/NOK Picking Flap (index position 24)

- - - -

If one of the modules evaluate spring faulty workmanship, the spring will then slide into the bad springs box, else into the good spring box.



Netzwerk 1: Start measuring runtime (Start Cycle)



"HMI SYS".Support.LastCycle := RUNTIME("HMI SYS".Support.LastCycle_inout);







Netzwerk 2: Pulse generator



"HMI SYS".Support.Sav_Clock_Byte := "HMI SYS".Support.Sav_Clock_Byte XOR "Clock_Byte";

"M00 PLC Impulse" := "HMI SYS".Support.Sav_Clock_Byte AND "Clock_Byte";

"HMI SYS".Support.Sav_Clock_Byte := "Clock_Byte";







Netzwerk 3: CALL distributor



  "DI MAIN GLB"();

—>"DI MAIN P01"();

—>"DI MAIN P02"();

—>"DI MAIN P03"();

—>"DI MAIN P04"();

—>"DI MAIN P05"();

// ----

—>"DI OUT P01"();

—>"DI OUT P02"();

—>"DI OUT P03"();

—>"DI OUT P04"();

—>"DI OUT P05"();







Netzwerk 4: First cycle evaluation



    U     "M00 log 1"

    L     s5t#2s

    SE    "T00 OB1 FirstCycle SE"

    U     "T00 OB1 FirstCycle SE"

    =     "M00 OB1 FirstCycle"







Netzwerk 5: Flag logic =0, =1



"M00 log 0" := FALSE;

"M00 log 1" := TRUE;







Netzwerk 6: End measuring runtime (End Cycle)



"HMI SYS".Support.LastCycle := RUNTIME("HMI SYS".Support.LastCycle_inout);

"HMI SYS".Support.LastCycle_real := LREAL_TO_REAL(IN := "HMI SYS".Support.LastCycle);









FB20 MAIN GLB Global operating modes and signals evaluation







Netzwerk 1: Fault acknowledgement



"M00 ACK Imp" := NOT "M00 ACK FP" AND "HMI KEY".SYS.GLB.F1_AckKey;

"M00 ACK FP" := "HMI KEY".SYS.GLB.F1_AckKey;







Netzwerk 2: Call main station safety program



"M00 EStp ok" := "E00 EStp ok";







Netzwerk 3: GLB FLT faults monitoring



#FLT(FLT_MODULE := "M00 FLT ModuStp");







Netzwerk 4: Assigned failure complete machine



"M00 EStp ok" := "E00 S03 EStop";

"A00 Y56 OnOff" := "E00 S01 SftyDorCLS";







Netzwerk 5: Set failure complet machine



IF "M00 FltCmpltMaIS" THEN

    "M00 FltCmpltMaSR" := true;

END_IF;



IF "M00 FltCmpltMaSR" AND NOT "M00 Flt ACK" THEN

    IF "M00 FltCmpltMaSR" AND "M00 ACK Imp" THEN

        "M00 Flt ACK" := TRUE;

    END_IF;

ELSIF NOT "M00 FltCmpltMaIS" AND "M00 Flt ACK" THEN

    "M00 FltCmpltMaSR" := "M00 Flt ACK" := FALSE;

END_IF;







Netzwerk 6: Query assembly module at home position



"M00 HomPos" := "M01 HomPos" AND "M02 HomPos" AND "M03 HomPos" AND "M04 HomPos" AND "M05 HomPos"

AND "DatOfMod".GLB.STS.RunTimeCntr_seq3 > 0

AND "DatOfMod".GLB.STS.RunTimeCntr_seq4 > 0;



IF "M00 HomPos" THEN

    "M00 HomPosSR" := TRUE;

END_IF;







Netzwerk 7: Start operating mode AUTOMATIC



IF "HMI KEY".SYS.GLB.F3_OM_AUTO_ON AND ("M00 HomPosSR" OR "M00 HomPos") THEN

    "M00 OM AUTO" := TRUE;

    "M00 OM MANUAL" := "M00 OM HOME POS" := "M00 ManuCmpltMa run" := FALSE;

ELSIF "M00 OM AUTO" AND "HMI KEY".SYS.GLB.F5_Start AND ("M00 HomPosSR" OR "M00 HomPos") THEN

    "M00 AutoCmpltMa run" := TRUE;

END_IF;







Netzwerk 8: Start operating mode MANUAL



IF "HMI KEY".SYS.GLB.F4_OM_MANU_ON THEN

    "M00 OM MANUAL" := TRUE;

    "M00 OM AUTO" := "M00 AutoCmpltMa run" := "M00 OM HOME POS" := FALSE;

ELSIF "HMI KEY".SYS.GLB.F5_Start AND "M00 OM MANUAL" THEN

    "M00 ManuCmpltMa run" := TRUE;

END_IF;



"M00 ManuCmpltMa Imp" := NOT "M00 ManuCmpltMa run" AND "M00 ManuCmpltM FN";

"M00 ManuCmpltM FN" := "M00 ManuCmpltMa run";

#Halt_TOF_Pulse(IN := "M00 ManuCmpltMa Imp",PT := t#600ms);







Netzwerk 9: STOP all operating mode



#tmp_save := "M00 OM HOME POS" OR "HMI KEY".SYS.GLB.F8_Stop AND ("M00 AutoCmpltMa run" OR "M00 ManuCmpltMa run");

IF #tmp_save OR "M00 FltCmpltMaSR" THEN

    "M00 AutoCmpltMa run" := FALSE;

END_IF;

IF #tmp_save OR "M00 ManuCmpltMa Imp" THEN

    "M00 ManuCmpltMa run" := FALSE;

END_IF;







Netzwerk 10: Impuls Start complete machine



"M00 TrnsSysRun Imp" := NOT "M00 TrnsSysRun FP" AND ("M00 AutoCmpltMa run" OR "M00 ManuCmpltMa run" OR #SET.SET.S.steps);

"M00 TrnsSysRun FP" := "M00 AutoCmpltMa run" OR "M00 ManuCmpltMa run" OR #SET.SET.S.steps;







Netzwerk 11: Show key colour on HMI



"HMI KEY".SYS.GLB.F15_OM_ON_RUN := "M00 TrnsSysRun FP";

"HMI KEY".SYS.GLB.F11_Show_KeyColour_Start_Stop := "M00 AutoCmpltMa run" OR "M00 ManuCmpltMa run" OR #SET.SET.S.steps;

"HMI KEY".SYS.GLB.F14_Show_Key_Start_Stop := "M00 OM AUTO" OR "M00 OM MANUAL" OR "M00 OM HOME POS";







Netzwerk 12: Enable running each module



"M00 Enabled" := "M00 OM HOME POS" AND NOT "M00 FLT CmpltMaSR";

"M01 Enabled" := "M00 AutoCmpltMa run" AND NOT "M01 FLT ModuStpSR";

"M02 Enabled" := "M00 AutoCmpltMa run" AND NOT "M02 FLT ModuStpSR";

"M03 Enabled" := "M00 AutoCmpltMa run" AND NOT "M03 FLT ModuStpSR";

"M04 Enabled" := "M00 AutoCmpltMa run" AND NOT "M04 FLT ModuStpSR";

"M05 Enabled" := "M00 AutoCmpltMa run" AND NOT "M05 FLT ModuStpSR";







Netzwerk 13: START home position complete machine



IF "HMI KEY".SYS.GLB.F7_OM_HOM_POS_ON AND NOT "M00 HomPos" THEN

    "M00 OM HOME POS" := TRUE;

    "M00 OM AUTO" := "M00 OM MANUAL" := FALSE;

ELSIF "HMI KEY".SYS.GLB.F5_Start AND "M00 OM HOME POS" AND NOT "M00 FLT CmpltMaSR" THEN

    #SET.SET.S.steps := TRUE;

    "M00 HomPosSR" := FALSE;

END_IF;

IF NOT "M00 OM HOME POS" OR "HMI KEY".SYS.GLB.F8_Stop THEN

    #SET.SET.S.steps := FALSE;

END_IF;



"M00 Active" := #SET.SET.S.steps;

#SET.SET.S.steph := "M00 FltCmpltMaSR";

#SET(ACT_STEP => #SET.STEP_NO);







FB21 SET GLB execute home position of all modules









Netzwerk 1: SET execute home position



#SET(MAX_STEP := 4);

#ACT_STEP := #SET.S.stepact;

#SET.S.DlyStart.PT := t#200ms;







Netzwerk 2: Step jump distributor



CASE #SET.S.stepact OF

    0: // Waiting for enable

        #SET.S.stepd := #SET.S.steps;



    1: // Query M5_Z axis home HomDone

        #FLT."3_FAULT_00_15".%X0 := NOT "DI OUT P02".M5_Z.DRV.Support.HomDone;

        #SET.S.stepd := "DI OUT P02".M5_Z.DRV.Support.HomDone;



    2: // Create pulse master move to home position

        "M05 Init" := #SET.S.DlyStart.Q;

        #SET.S.stepd := #SET.S.stepd := NOT #SET.S.DlyStart.Q AND "M05 HomPos";



    3: // Create puls all slave move to home position

        "M01 Init" :=

        "M02 Init" :=

        "M03 Init" :=

        "M04 Init" := #SET.S.DlyStart.Q;

        #SET.S.stepd := NOT #SET.S.DlyStart.Q;



    4: // End home position complet machine

        IF "M00 HomPos" THEN

            "M00 OM HOME POS" := FALSE;

        END_IF;

END_CASE;
