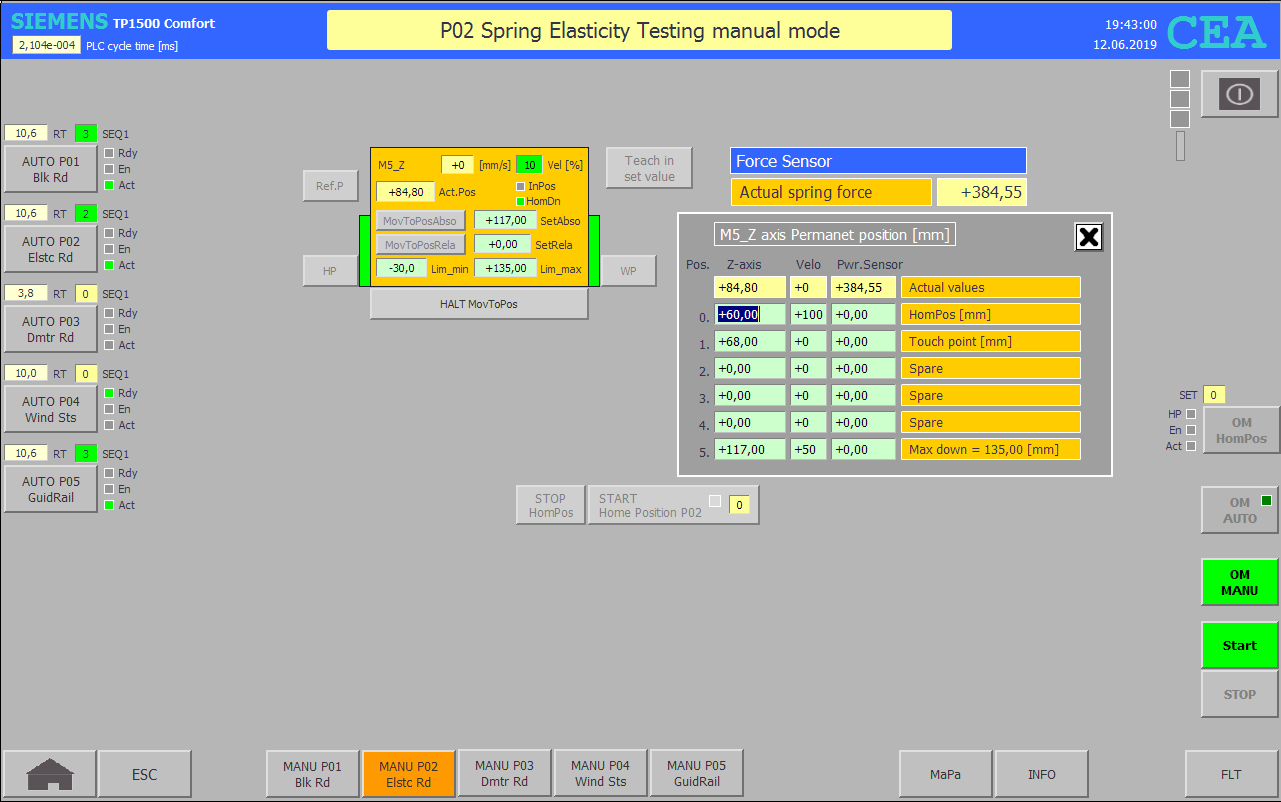

FB48 MAN P02 : Spring elasticity reading - manual mode (slave 2)







Netzwerk 1: M5_Z axis Elasticity servo drive enable



IF #ST_MANU AND NOT #SUPPORT_SEQ THEN

// 31N1_X In-Press axis

IF #M5_Z.ManuVelocity_2 > 100 THEN

#M5_Z.ManuVelocity_2 := 100;

END_IF;

"DI OUT P02".M5_Z.DRV.Support.SetVelo := LINT_TO_LREAL(IN := #M5_Z.ManuVelocity_2);

// Jog slow HP (button function)

#M5_Z.CmdExe_slow_HP := "HMI KEY".P02.M5_Z.F4_Jog_slow_HP;

// Jog slow WP (button function)

#M5_Z.CmdExe_slow_WP := "HMI KEY".P02.M5_Z.F3_Jog_slow_WP;

END_IF;

// 31N1_X Enabling HP

"HMI KEY".P02.M5_Z.F11_Enable_HP :=

"DI OUT P02".M5_Z.DRV.Support.SetVelo > 0.0

AND "DI OUT P02".M5_Z.DRV.Support.InOperation

AND "DI OUT P02".M5_Z.DRV.Support.ActPos >= "DI OUT P02".M5_Z.DRV.Support.SW_EndLim_MinPos

AND NOT "DI OUT P02".M5_Z.DRV.Support.SW_EndLim_Min AND NOT "DI OUT P02".M5_Z.drv_com_flt;

// 31N1_X Enabling WP

"HMI KEY".P02.M5_Z.F12_Enable_WP :=

"DI OUT P02".M5_Z.DRV.Support.SetVelo > 0.0

AND "DI OUT P02".M5_Z.DRV.Support.InOperation

AND "DI OUT P02".M5_Z.DRV.Support.ActPos <= "DI OUT P02".M5_Z.DRV.Support.SW_EndLim_MaxPos

AND NOT "DI OUT P02".M5_Z.DRV.Support.SW_EndLim_Max AND NOT "DI OUT P02".M5_Z.drv_com_flt;







Netzwerk 1: Monitoring manual operation ***



IF NOT #ST_MANU THEN

RETURN;

ELSIF #MODULE_HP AND NOT #GLB.HomPos_REg THEN

"M02 Init" := TRUE;

END_IF;

#GLB.HomPos_REg := #MODULE_HP;

IF #SUPPORT_SEQ THEN

RETURN;

END_IF;







Netzwerk 1: M5_Z axis Elasticity servo drive execute



#M5_Z.CmdExe_slow_fast_WP :=

"HMI KEY".P02.M5_Z.F12_Enable_WP

AND #M5_Z.CmdExe_slow_WP

AND NOT "HMI KEY".P02.M5_Z.F21_HALT_GoToPos;



#M5_Z.CmdExe_slow_fast_HP :=

"HMI KEY".P02.M5_Z.F11_Enable_HP

AND #M5_Z.CmdExe_slow_HP

AND NOT "HMI KEY".P02.M5_Z.F21_HALT_GoToPos;
