FB38 MAN P01 : Spring block reading - manual mode (slave 1) |
|
|
|
|
|
Netzwerk 1: Z01 Spring-block slide enable
HMI KEY".P01.Z01.F11_Enable_HP := "HMI KEY".P01.Z01.F12_Enable_WP := "DI OUT P01".Z01.VLV.SetIdleTime > 0 AND "E00 Y56 WP" AND NOT "DI OUT P01".Z01.vlv_com_flt; |
|
|
|
|
|
Netzwerk 2: Monitoring manual operation ***
IF NOT #ST_MANU THEN RETURN; ELSIF #MODULE_HP AND NOT #GLB.HomPos_REg THEN "M01 Init" := TRUE; END_IF; #GLB.HomPos_REg := #MODULE_HP; IF #SUPPORT_SEQ THEN RETURN; END_IF; |
|
|
|
|
|
Netzwerk 3: Z01 Spring-block slide execute
"DI OUT P01".Z01.VLV.CmdExe_WP := "HMI KEY".P01.Z01.F12_Enable_WP AND NOT "HMI KEY".P01.Z01.F1_HP AND ("HMI KEY".P01.Z01.F2_WP OR "DI OUT P01".Z01.FB_WP);
"DI OUT P01".Z01.VLV.CmdExe_HP := "HMI KEY".P01.Z01.F11_Enable_HP AND NOT "HMI KEY".P01.Z01.F2_WP AND ("HMI KEY".P01.Z01.F1_HP OR "DI OUT P01".Z01.FB_HP); |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Automatic or manual mode |
|

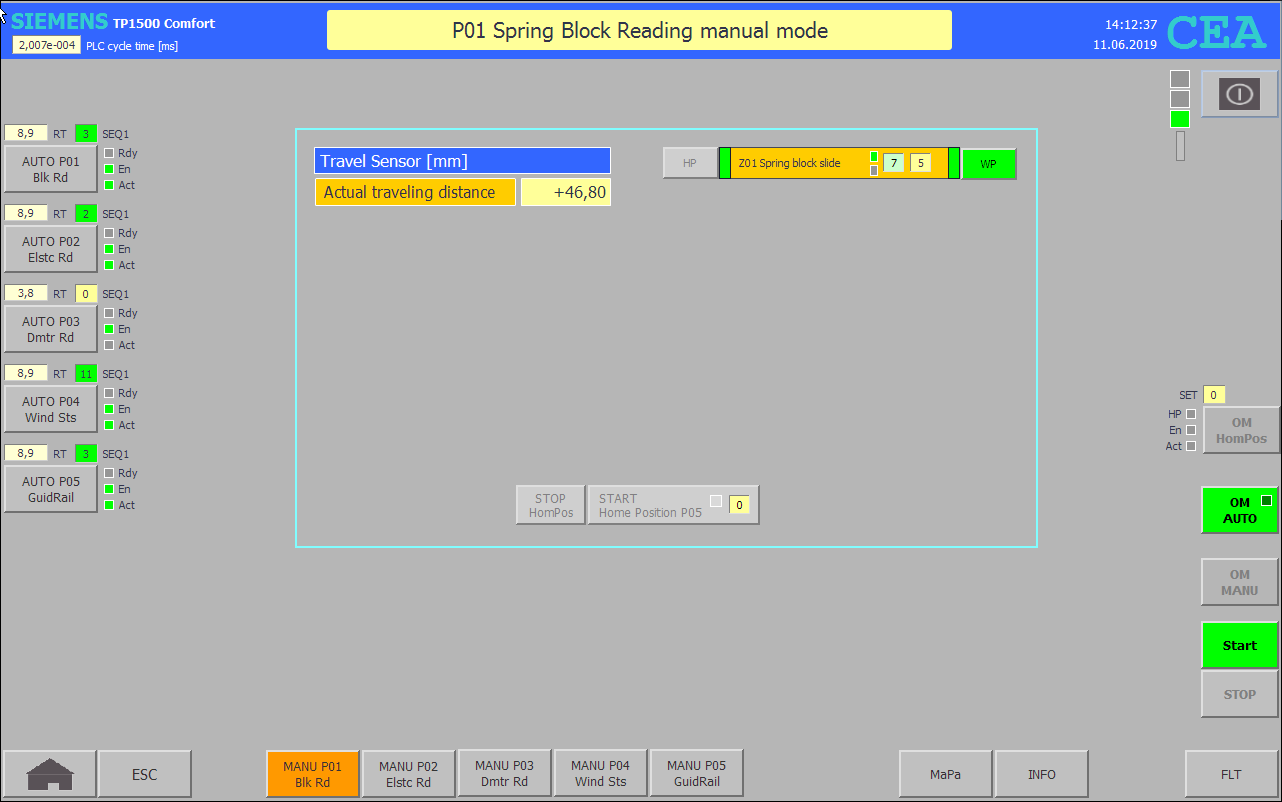

The light blue frame suggests that manual operation is not possible since automatic mode is active. |
