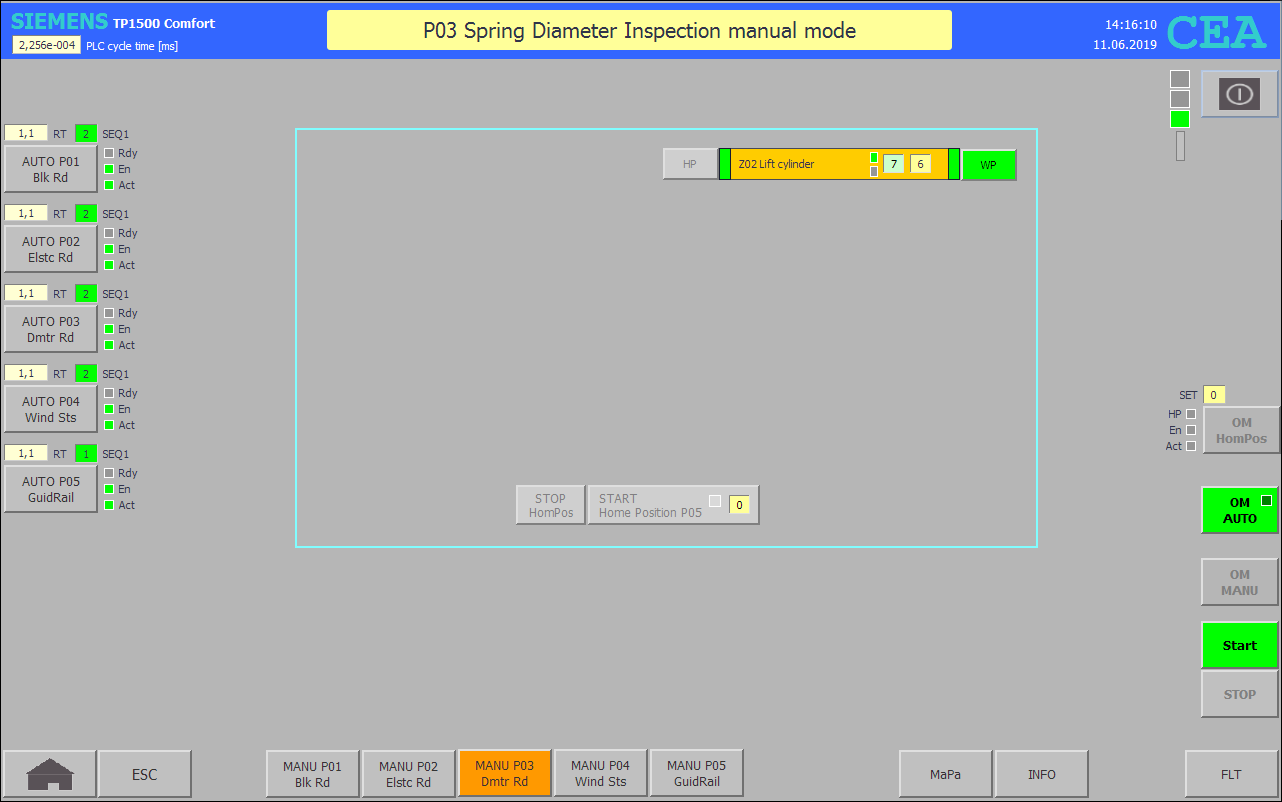

FB58 MAN P03 : Spring diameter inspection - manual mode (slave 3)







Netzwerk 1: Z02 Camera cylinder enable



"HMI KEY".P03.Z02.F11_Enable_HP := "HMI KEY".P03.Z02.F12_Enable_WP :=

"DI OUT P03".Z02.VLV.SetIdleTime > 0

AND "E00 Y56 WP" AND NOT "DI OUT P03".Z02.vlv_com_flt;







Netzwerk 2: CAM1 enable











Netzwerk 3: Monitoring manual operation ***



IF NOT #ST_MANU THEN

RETURN;

ELSIF #MODULE_HP AND NOT #GLB.HomPos_REg THEN

"M03 Init" := TRUE;

END_IF;

#GLB.HomPos_REg := #MODULE_HP;

IF #SUPPORT_SEQ THEN

RETURN;

END_IF;







Netzwerk 4: Z02 Camera cylinder execute



"DI OUT P03".Z02.VLV.CmdExe_WP := "HMI KEY".P03.Z02.F12_Enable_WP

AND NOT "HMI KEY".P03.Z02.F1_HP AND ("HMI KEY".P03.Z02.F2_WP OR "DI OUT P03".Z02.FB_WP);



"DI OUT P03".Z02.VLV.CmdExe_HP := "HMI KEY".P03.Z02.F11_Enable_HP

AND NOT "HMI KEY".P03.Z02.F2_WP AND ("HMI KEY".P03.Z02.F1_HP OR "DI OUT P03".Z02.FB_HP);







Netzwerk 5: CAM1 execute
