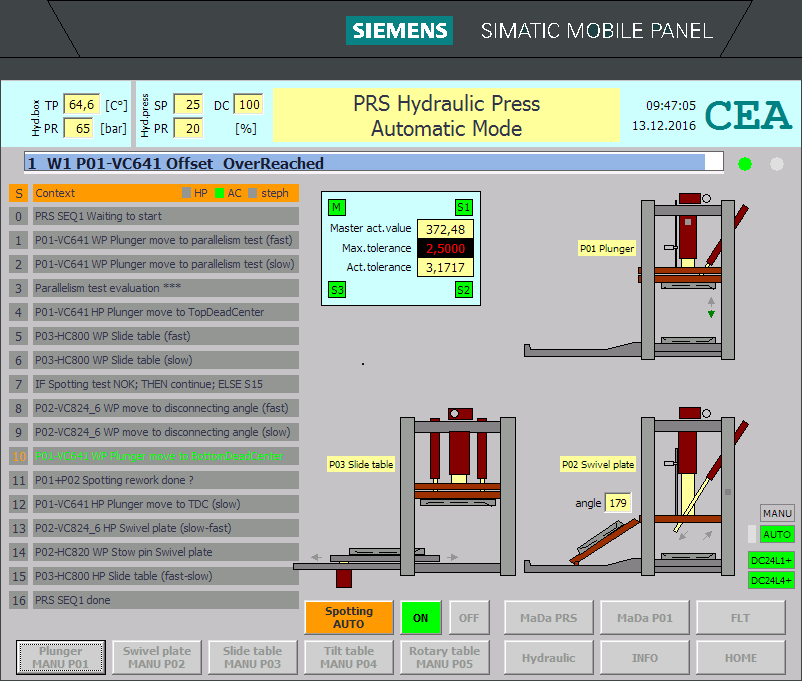

FC21 SEQ1 PRS : SEQ1 Spotting press automatic |
|
|
|
|
|
Netzwerk 1: PRS Limit number of steps L 16 T "DI MAIN PRS".SEQ1.S.stepmax |
|
|
|
|
|
Netzwerk 2: PRS Step jump distributor SET L "DI MAIN PRS".SEQ1.S.stepact SPL OVFL SPA S0 . . OVFL: = "DI MAIN PRS".SEQ1.S.stepd L 0 T "DI MAIN PRS".SEQ1.S.stepnew BEA |
|
|
|
|
|
Netzwerk 3: PRS Waiting to enable start up S0: R "M00 SEQ1 Active"
U "M00 HomPos" U "DI MAIN PRS".SEQ1.S.steps = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 4: P01-VC641 WP Plunger move to parallelism test (fast) S1: S "M00 SEQ1 Active"
U "DI MAIN PRS".SEQ1.S.stepa U "DI OUT P01".Support."VC641 bit_CMD_Start_Valid" = "HMI KEY".P01.VC641.F14_set_rapid_traverse = "M01 VC641 SEQ run WP"
L "DI OUT P01".VC641.Support.MaPa.Pressure_high T "HMI KEY".PRS.YAW286.Int_InOut
U "DI OUT P01".Support."VC641 bit_ChangeOver" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 5: P01-VC641 WP Plunger move to parallelism test (slow) S2: U "DI MAIN PRS".SEQ1.S.stepa U "DI OUT P01".Support."VC641 bit_CMD_Start_Valid" = "M01 VC641 SEQ run WP"
L "DI OUT P01".VC641.Support.MaPa.Speed_low T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P01".VC641.Support.MaPa.Pressure_low T "HMI KEY".PRS.YAW286.Int_InOut
U "DI OUT P01".Support."VC641 bit_Parallelism_Test" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 6: Parallelism test evaluation *** S3: S "DI MAIN PRS".SEQ1.S.c1.start L 100 T "DI MAIN PRS".SEQ1.S.c1.set
UN "DI MAIN PRS".SEQ1.S.c1.done BEB = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 7: P01-VC641 HP Plunger move to TDC (Top Dead Center) S4: U "DI MAIN PRS".SEQ1.S.stepa U "DI OUT P01".Support."VC641 bit_CMD_Start_Valid" = "M01 VC641 SEQ run HP"
L "DI OUT P01".VC641.Support.MaPa.Speed_high T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P01".VC641.Support.MaPa.Pressure_high T "HMI KEY".PRS.YAW286.Int_InOut
U "DI OUT P01".Support."VC641 bit_TDC" R "M01 VC641 SEQ run HP"
U "E01 HC680 B353 WP" U "DI OUT P01".Support."VC641 bit_TDC" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 8: P03-HC800 WP Slide table (fast) S5: U "DI MAIN PRS".SEQ1.S.stepa = "M03 HC800 SEQ run WP" = "HMI KEY".P03.HC800.F14_set_rapid_traverse
L "DI OUT P03".HC800.Support.MaPa.Pressure_high T "HMI KEY".PRS.YAW286.Int_InOut
U "E03 HC800 B53 slow WP" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 9: P03-HC800 WP Slide table (slow) S6: U "DI MAIN PRS".SEQ1.S.stepa = "M03 HC800 SEQ run WP"
L "DI OUT P03".HC800.Support.MaPa.Speed_low T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P03".HC800.Support.MaPa.Pressure_low T "HMI KEY".PRS.YAW286.Int_InOut
U "DI MAIN PRS".SEQ1.S.stepa U "E03 HC800 B52 WP" R "M03 HC800 SEQ run WP" = "M03 HC802 SEQ run WP"
U "E03 HC800 B52 WP" U "E03 HC802 B54 WP" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 10: IF Spotting test NOK; THEN continue; ELSE S15 S7: U "DI OUT P01".Support."VC641 bit_Offset_OverReached" SPB m100 L 15 T "DI MAIN PRS".SEQ1.S.stepnew U "HMI KEY".PRS.F20_HomPos m100: = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 11: P02-VC824_6 WP move to disconeting angle (fast) S8: U "DI MAIN PRS".SEQ1.S.stepa = "HMI KEY".P02.VC824_6.F14_set_rapid_traverse = "M02 VC824_6 SEQ run WP"
L "DI OUT P02".VC824_6.Support.MaPa.Pressure_high T "HMI KEY".PRS.YAW286.Int_InOut
U "E02 VC824 B540 Li slow WP" U "E02 VC826 B542 Re slow WP" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 12: P02-VC824_6 WP move to disconnecting angle (slow) S9: U "DI MAIN PRS".SEQ1.S.stepa = "M02 VC824_6 SEQ run WP"
L "DI OUT P03".HC800.Support.MaPa.Speed_low T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P03".HC800.Support.MaPa.Pressure_low T "HMI KEY".PRS.YAW286.Int_InOut
U "DI OUT P02".Support.bit_VC824_6_Disconnecting_Angle = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 13: VC641 WP Plunger move to BDC (Bottom Dead Center) S10: U "DI MAIN PRS".SEQ1.S.stepa U "DI OUT P01".Support."VC641 bit_CMD_Start_Valid" = "M01 VC641 SEQ run WP"
L "DI OUT P01".VC641.Support.MaPa.Speed_low T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P01".VC641.Support.MaPa.Pressure_low T "HMI KEY".PRS.YAW286.Int_InOut
U "DI OUT P01".Support."VC641 bit_BDC" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 14: P01+P02 Spotting rework done S11: U "HMI KEY".PRS.F5_Start U "DI OUT P01".Support."VC641 bit_Offset_OverReached" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 15: P01-VC641 HP Plunger move to TDC (slow) S12: U "DI MAIN PRS".SEQ1.S.stepa = "M01 VC641 SEQ run HP"
L "DI OUT P01".VC641.Support.MaPa.Speed_low T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P01".VC641.Support.MaPa.Pressure_low T "HMI KEY".PRS.YAW286.Int_InOut
U "DI OUT P01".Support."VC641 bit_ChangeOver" BEB = "HMI KEY".P02.VC824_6.F14_set_rapid_traverse
L "DI OUT P01".VC641.Support.MaPa.Pressure_high T "HMI KEY".PRS.YAW286.Int_InOut
U "DI OUT P01".Support."VC641 bit_TDC" R "M01 VC641 SEQ run HP"
U "E01 HC680 B353 WP" U "DI OUT P01".Support."VC641 bit_TDC" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 16: P02-VC824/VC826 HP Swivel plate (slow-fast) S13: U "DI MAIN PRS".SEQ1.S.stepa = "M02 VC824_6 SEQ run HP"
L "DI OUT P02".VC824_6.Support.MaPa.Speed_low T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P02".VC824_6.Support.MaPa.Pressure_low T "HMI KEY".PRS.YAW286.Int_InOut
O "E02 VC824 B540 Li slow WP" O "E02 VC826 B542 Re slow WP" BEB = "HMI KEY".P02.VC824_6.F14_set_rapid_traverse
L "DI OUT P02".VC824_6.Support.MaPa.Pressure_high T "HMI KEY".PRS.YAW286.Int_InOut
U "E02 VC824 B530 Li HP" U "E02 VC826 B532 Re HP" U "DI OUT P02".Support.bit_VC824_6_TDC = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 17: P02-HC820 WP Stow pin Swivel plate S14: U "DI MAIN PRS".SEQ1.S.stepa = "M02 HC820 SEQ run WP"
U "E02 HC820 B522 Re WP" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 18: P03-HC800 HP Slide table (fast-slow) S15: U "DI MAIN PRS".SEQ1.S.stepa = "M03 HC800 SEQ run HP"
L "DI OUT P03".HC800.Support.MaPa.Pressure_high T "HMI KEY".PRS.YAW286.Int_InOut
UN "E03 HC800 B51 slow HP" = "HMI KEY".P03.HC800.F14_set_rapid_traverse BEB L "DI OUT P03".HC800.Support.MaPa.Speed_low T "HMI KEY".PRS.YAW280.Int_InOut
L "DI OUT P03".HC800.Support.MaPa.Pressure_low T "HMI KEY".PRS.YAW286.Int_InOut
U "DI MAIN PRS".SEQ1.S.stepa U "E03 HC800 B50 HP" R "M03 HC800 SEQ run HP" = "M03 HC802 SEQ run WP"
U "E03 HC802 B54 WP" = "DI MAIN PRS".SEQ1.S.stepd BEA |
|
|
|
|
|
Netzwerk 19: PRS SEQ1 done S16: U "M00 HomPos" S "M00 SEQ1 Done" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
