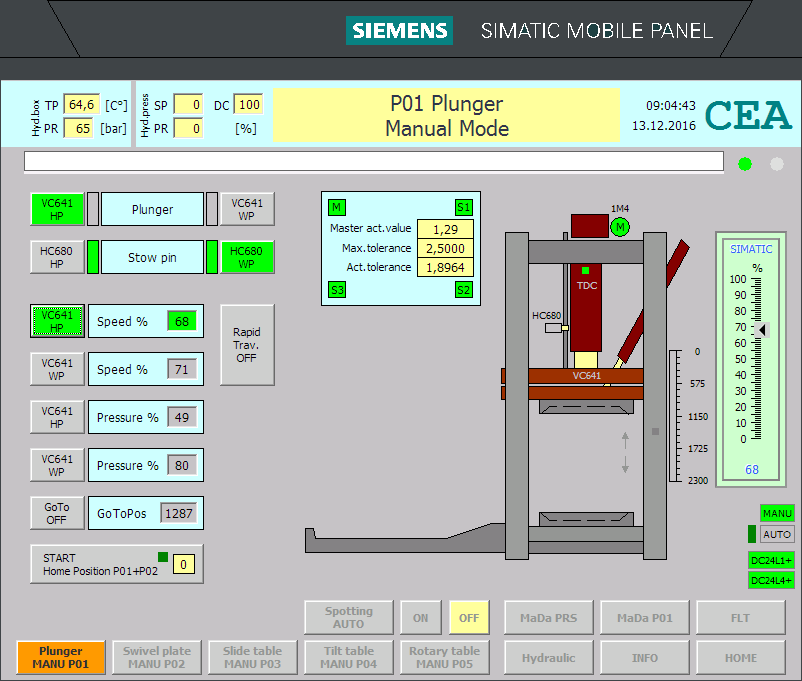

FB31 MANU P01 : Plunger manual mode |
|
|
|
|
|
Netzwerk 1: Fault transfer 00_15 L "DI MAIN P01".FLT."1_fault_00_15" T #"1_FAULT_00_15" L "DI MAIN P01".FLT."2_fault_00_15" T #"2_FAULT_00_15" |
|
|
|
|
|
Netzwerk 2: 1_X0 Enable VC641 Plunger U "E00 DC24L4 E9003" U "E01 HC680 B352 HP" UN #"1_FAULT_00_15".%X0 = "HMI KEY".P01.VC641.Enbl_HP = "HMI KEY".P01.VC641.Enbl_WP |
|
|
|
|
|
Netzwerk 3: 1_X1 Enable HC680 Stow pin U "E00 DC24L4 E9003" = "HMI KEY".P01.HC680.Enbl_WP = "HMI KEY".P01.HC680.Enbl_HP |
|
|
|
|
|
Netzwerk 4: P01 Monitoring manual operation **** UN #ST_MANU BEB
U #HMI_HOM_POS FP #HMI_HomPos_FP = "M01 Init"
U #SUPPORT_MANU BEB |
|
|
|
|
|
Netzwerk 5: VC641 Set point speed U "HMI KEY".P01.VC641.F14_set_rapid_traverse R "HMI KEY".P01.VC641.Support.Speed_WP_on R "HMI KEY".P01.VC641.Support.Speed_HP_on SPB m073 U "HMI KEY".P01.VC641.F10_set_speed_HP SPBN m070 S "HMI KEY".P01.VC641.Support.Speed_HP_on R "HMI KEY".P01.VC641.Support.Speed_WP_on R "HMI KEY".P01.VC641.Support.Pressure_WP_on R "HMI KEY".P01.VC641.Support.Pressure_HP_on m077: L "DI OUT P01".VC641.Support.speed_HP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m070: U "HMI KEY".P01.VC641.Support.Speed_HP_on SPBN m071 L "DI OUT P01".VC641.Support.SavePos L "DI OUT P01".VC641.Support.speed_HP T "DI OUT P01".VC641.Support.SavePos XOW SPZ m076 L "DI OUT P01".VC641.Support.speed_HP UW O <>0 O ==0 SPB m077 BEA m076: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P01".VC641.Support.speed_HP
m071: U "HMI KEY".P01.VC641.F11_set_speed_WP SPBN m072 S "HMI KEY".P01.VC641.Support.Speed_WP_on R "HMI KEY".P01.VC641.Support.Speed_HP_on R "HMI KEY".P01.VC641.Support.Pressure_WP_on R "HMI KEY".P01.VC641.Support.Pressure_HP_on
m075: L "DI OUT P01".VC641.Support.speed_WP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m072: U "HMI KEY".P01.VC641.Support.Speed_WP_on SPBN m073 L "DI OUT P01".VC641.Support.SavePos L "DI OUT P01".VC641.Support.speed_WP T "DI OUT P01".VC641.Support.SavePos XOW SPZ m074 L "DI OUT P01".VC641.Support.speed_WP UW O <>0 O ==0 SPB m075 BEA m074: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P01".VC641.Support.speed_WP |
|
|
|
|
|
Netzwerk 6: VC641 Set point pressure m073: U "HMI KEY".P01.VC641.F12_set_pressure_HP SPBN m080 S "HMI KEY".P01.VC641.Support.Pressure_HP_on R "HMI KEY".P01.VC641.Support.Pressure_WP_on R "HMI KEY".P01.VC641.Support.Speed_WP_on R "HMI KEY".P01.VC641.Support.Speed_HP_on m083: L "DI OUT P01".VC641.Support.pressure_HP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m080: U "HMI KEY".P01.VC641.Support.Pressure_HP_on SPBN m081 L "DI OUT P01".VC641.Support.SavePos L "DI OUT P01".VC641.Support.pressure_HP T "DI OUT P01".VC641.Support.SavePos XOW SPZ m082 L "DI OUT P01".VC641.Support.pressure_HP UW O <>0 O ==0 SPB m083 BEA m082: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P01".VC641.Support.pressure_HP
m081: U "HMI KEY".P01.VC641.F13_set_pressure_WP SPBN m084 S "HMI KEY".P01.VC641.Support.Pressure_WP_on R "HMI KEY".P01.VC641.Support.Pressure_HP_on R "HMI KEY".P01.VC641.Support.Speed_WP_on R "HMI KEY".P01.VC641.Support.Speed_HP_on m087: L "DI OUT P01".VC641.Support.pressure_WP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m084: U "HMI KEY".P01.VC641.Support.Pressure_WP_on SPBN m085 L "DI OUT P01".VC641.Support.SavePos L "DI OUT P01".VC641.Support.pressure_WP T "DI OUT P01".VC641.Support.SavePos XOW SPZ m086 L "DI OUT P01".VC641.Support.pressure_WP UW O <>0 O ==0 SPB m087 BEA m086: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P01".VC641.Support.pressure_WP |
|
|
|
|
|
Netzwerk 7: HC680 Execute manual operation m085: U "HMI KEY".P01.HC680.F1_HP S "HMI KEY".P01.HC680.Manual_Jog_output_HP ON "HMI KEY".P01.HC680.Enbl_WP O "HMI KEY".P01.HC680.F2_WP R "HMI KEY".P01.HC680.Manual_Jog_output_HP |
|
|
|
|
|
Netzwerk 8: VC641 Execute manual operation U "HMI KEY".P01.VC641.F1_HP U "HMI KEY".P01.VC641.Enbl_HP = "HMI KEY".P01.VC641.Manual_Jog_output_HP
U "HMI KEY".P01.VC641.F2_WP U "HMI KEY".P01.VC641.Enbl_WP = "HMI KEY".P01.VC641.Manual_Jog_output_WP |
|
|
|
|
|
Netzwerk 9: VC641 GoTo pos UN "HMI KEY".P01.VC641.F5_Set_Ref_Point BEB L "HMI KEY".P01.VC641.Int_InOut DTR L "DI OUT P01".Master.SSI_Position <R = "HMI KEY".P01.VC641.F1_HP NOT = "HMI KEY".P01.VC641.F2_WP -R ABS L 5.0 <R R "HMI KEY".P01.VC641.F1_HP R "HMI KEY".P01.VC641.F2_WP R "HMI KEY".P01.VC641.F5_Set_Ref_Point |
|
|
FB36 OUT P01 : Plunger output |
|
|
|
|
|
Netzwerk 1: Pre-Setting L 4.0 L #Master.SSI_Position >R = #Support."VC641 bit_TDC" L #MaDa.VC641_SSI_Press_BDC >R = #Support."VC641 bit_BDC" TAK L #MaDa.VC641_SSI_ChangeOver >R = #Support."VC641 bit_ChangeOver" TAK L #MaDa.VC641_SSI_Press_Parallel_Test >R = #Support."VC641 bit_Parallelism_Test"
O "M00 Auto CmpltMa run" O "M01 RunHomPos" = #tmp_seq_cmd_onoff |
|
|
|
|
|
Netzwerk 2: Support green buton on HMI O "A01 VC641 Y641 HP" O #Support."VC641 bit_TDC" = "HMI KEY".P01.VC641.Support.ActorOn_HP
O "A01 VC641 Y642 WP" O #Support."VC641 bit_BDC" = "HMI KEY".P01.VC641.Support.ActorOn_WP |
|
|
|
|
|
Netzwerk 3: VC641 Plunger SSI master position U #Support."VC641 bit_CMD_Start_Valid" SPBN m020 L "E01 M ED512 CH0":P T #tmp_dint_pos L #tmp_dint_pos DTR L #Master.SSI_constant /R L #Master.SSI_offset +R T #Master.SSI_Position |
|
|
|
|
|
Netzwerk 4: VC641 Plunger SSI slave 1 position m020: U #Support."VC641 bit_S1_act" SPBN m030 L "E01 S1 ED528 CH1":P T #tmp_dint_pos L #tmp_dint_pos DTR L #Slave1.SSI_constant /R L #Slave1.SSI_offset +R T #Slave1.SSI_Position |
|
|
|
|
|
Netzwerk 5: VC641 Plunger SSI slave 2 position m030: U #Support."VC641 bit_S2_act" SPBN m040 L "E01 S2 ED544 CH0":P T #tmp_dint_pos L #tmp_dint_pos DTR L #Slave2.SSI_constant /R L #Slave2.SSI_offset +R T #Slave2.SSI_Position |
|
|
|
|
|
Netzwerk 6: VC641 Plunger SSI slave 3 position m040: U #Support."VC641 bit_S3_act" SPBN m050 L "E01 S3 ED560 CH1":P L "E01 S3 ED560 CH1" T #tmp_dint_pos L #tmp_dint_pos DTR L #Slave3.SSI_constant /R L #Slave3.SSI_offset +R T #Slave3.SSI_Position |
|
|
|
|
|
Netzwerk 7: Parallelism control m050: O #Support."VC641 bit_Ms_act" O #Support."VC641 bit_S1_act" O #Support."VC641 bit_S2_act" O #Support."VC641 bit_S3_act" = #tmp_cmd_onoff Start :=#tmp_cmd_onoff Max_Tolerance :=#MaDa.MaxTolerance Offset_OverReached:=#Support."VC641 Offset_OverR" CMD_Start_Valid :=#Support."VC641 CMD_Start_Valid" |
|
|
|
|
|
Netzwerk 8: Y645 Safety valve plunger U "A01 VC641 Y642 WP" U "E01 HC680 B352 HP" ON "A01 VC641 Y641 HP" L #Y645.Support.DlyOnOff SA "T01 Y645 WP" U "T01 Y645 WP" U "E00 DC24L4 E9003" = "A01 Y645 HV WP" |
|
|
|
|
|
Netzwerk 9: HC680 Stow Pin plunger HP O #VC641.Support.CMD_HP O #VC641.Support.CMD_WP U #tmp_seq_cmd_onoff O "HMI KEY".P01.HC680.Manual_Jog_output_HP = "A01 HC680 Y680 HP" |
|
|
|
|
|
Netzwerk 10: VC641 start plunger HP U "M01 VC641 SEQ run HP" U #tmp_seq_cmd_onoff O "HMI KEY".P01.VC641.Manual_Jog_output_HP = #VC641.Support.CMD_HP
U #VC641.Support.CMD_HP U "E01 HC680 B352 HP" UN #Support."VC641 bit_TDC" = "A01 VC641 Y641 HP" |
|
|
|
|
|
Netzwerk 11: VC641 start plunger WP U "M01 VC641 SEQ run WP" U #tmp_seq_cmd_onoff O "HMI KEY".P01.VC641.Manual_Jog_output_WP = #VC641.Support.CMD_WP
U #VC641.Support.CMD_WP U "E01 HC680 B352 HP" UN #Support."VC641 bit_BDC" = "A01 VC641 Y642 WP" |
|
|
|
|
|
Netzwerk 12: Exit If not manual mode *** ON "M00 Manu CmpltMa run" ON "M01 Enabled" BEB |
|
|
|
|
|
Netzwerk 13: VC641 plunger set point HP 0-100% U "A01 Y681 HV WP" SPBN m090 L #VC641.Support.speed_HP T "HMI KEY".PRS.YAW280.Int_InOut
L #VC641.Support.pressure_HP T "HMI KEY".PRS.YAW286.Int_InOut
L #VC641.Support.MaPa.Decompression T "HMI KEY".PRS.YAW284.Int_InOut BEA |
|
|
|
|
|
Netzwerk 14: VC641 plunger set point WP 0-100% m090: U "A01 VC641 Y642 WP" SPBN m100 L #VC641.Support.MaPa.Speed_low U #Support."VC641 bit_ChangeOver" SPB m101 L #VC641.Support.speed_WP m101: T "HMI KEY".PRS.YAW280.Int_InOut
L #VC641.Support.pressure_WP T "HMI KEY".PRS.YAW286.Int_InOut
L #VC641.Support.MaPa.Decompression T "HMI KEY".PRS.YAW284.Int_InOut m100: NOP 0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
