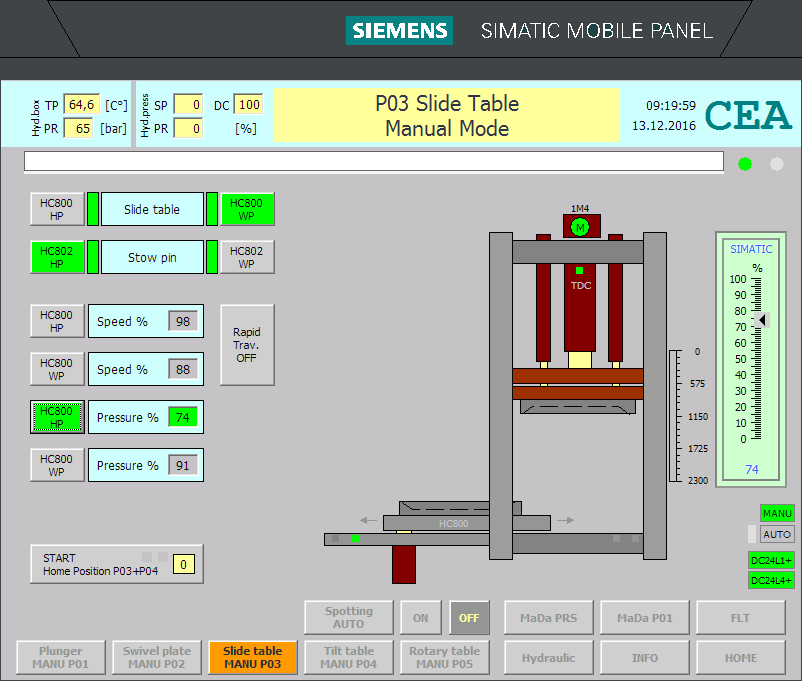

FB51 MANU P03 : Slide Table Manual Mode |
|
|
|
|
|
Netzwerk 1: Fault transfer 00_15 L "DI MAIN P03".FLT."1_fault_00_15" T #"1_FAULT_00_15" L "DI MAIN P03".FLT."2_fault_00_15" T #"2_FAULT_00_15" |
|
|
|
|
|
Netzwerk 2: 1_X0 HC800 Slide table Enable U "E00 DC24L4 E9003" U "DI OUT P01".Support."VC641 bit_TDC" U "E03 HC802 B55 HP" U "E05 4M1 B42 Pos1" U "E04 VC810 B40 HP" UN "DI MAIN P03".FLT."1_fault_00_15".%X0 = "HMI KEY".P03.HC800.Enbl_WP = "HMI KEY".P03.HC800.Enbl_HP |
|
|
|
|
|
Netzwerk 3: 1_X1 HC802 Stow pin Enable U "E00 DC24L4 E9003" UN "DI MAIN P03".FLT."1_fault_00_15".%X1 = "HMI KEY".P03.HC802.Enbl_HP = "HMI KEY".P03.HC802.Enbl_WP |
|
|
|
|
|
Netzwerk 4: 1_X2 res.
|
|
|
|
|
|
Netzwerk 5: P03 Monitoring manual operation *** UN #ST_MANU BEB
U #HMI_HOM_POS U "M01 HomPos" FP #HMI_HomPos_FP = "M03 Init"
U #SUPPORT_MANU BEB |
|
|
|
|
|
Netzwerk 6: HC800 Slide table Set point speed U "HMI KEY".P03.HC800.F14_set_rapid_traverse R "HMI KEY".P03.HC800.Support.Speed_WP_on R "HMI KEY".P03.HC800.Support.Speed_HP_on SPB m073 U "HMI KEY".P03.HC800.F10_set_speed_HP SPBN m070 S "HMI KEY".P03.HC800.Support.Speed_HP_on R "HMI KEY".P03.HC800.Support.Speed_WP_on R "HMI KEY".P03.HC800.Support.Pressure_WP_on R "HMI KEY".P03.HC800.Support.Pressure_HP_on m077: L "DI OUT P03".HC800.Support.speed_HP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m070: U "HMI KEY".P03.HC800.Support.Speed_HP_on SPBN m071 L "DI OUT P03".HC800.Support.SavePos L "DI OUT P03".HC800.Support.speed_HP T "DI OUT P03".HC800.Support.SavePos XOW SPZ m076 L "DI OUT P03".HC800.Support.speed_HP UW O <>0 O ==0 SPB m077 BEA m076: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P03".HC800.Support.speed_HP
m071: U "HMI KEY".P03.HC800.F11_set_speed_WP SPBN m072 S "HMI KEY".P03.HC800.Support.Speed_WP_on R "HMI KEY".P03.HC800.Support.Speed_HP_on R "HMI KEY".P03.HC800.Support.Pressure_WP_on R "HMI KEY".P03.HC800.Support.Pressure_HP_on
m075: L "DI OUT P03".HC800.Support.speed_WP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m072: U "HMI KEY".P03.HC800.Support.Speed_WP_on SPBN m073 L "DI OUT P03".HC800.Support.SavePos L "DI OUT P03".HC800.Support.speed_WP T "DI OUT P03".HC800.Support.SavePos XOW SPZ m074 L "DI OUT P03".HC800.Support.speed_WP UW O <>0 O ==0 SPB m075 BEA m074: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P03".HC800.Support.speed_WP |
|
|
|
|
|
Netzwerk 7: HC800 Slide table Set point pressure m073: U "HMI KEY".P03.HC800.F12_set_pressure_HP SPBN m080 S "HMI KEY".P03.HC800.Support.Pressure_HP_on R "HMI KEY".P03.HC800.Support.Pressure_WP_on R "HMI KEY".P03.HC800.Support.Speed_WP_on R "HMI KEY".P03.HC800.Support.Speed_HP_on m083: L "DI OUT P03".HC800.Support.pressure_HP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m080: U "HMI KEY".P03.HC800.Support.Pressure_HP_on SPBN m081 L "DI OUT P03".HC800.Support.SavePos L "DI OUT P03".HC800.Support.pressure_HP T "DI OUT P03".HC800.Support.SavePos XOW SPZ m082 L "DI OUT P03".HC800.Support.pressure_HP UW O <>0 O ==0 SPB m083 BEA m082: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P03".HC800.Support.pressure_HP
m081: U "HMI KEY".P03.HC800.F13_set_pressure_WP SPBN m084 S "HMI KEY".P03.HC800.Support.Pressure_WP_on R "HMI KEY".P03.HC800.Support.Pressure_HP_on R "HMI KEY".P03.HC800.Support.Speed_WP_on R "HMI KEY".P03.HC800.Support.Speed_HP_on m087: L "DI OUT P03".HC800.Support.pressure_WP T "DI OUT PRS".MaDa.Slider_ControlValue BEA m084: U "HMI KEY".P03.HC800.Support.Pressure_WP_on SPBN m085 L "DI OUT P03".HC800.Support.SavePos L "DI OUT P03".HC800.Support.pressure_WP T "DI OUT P03".HC800.Support.SavePos XOW SPZ m086 L "DI OUT P03".HC800.Support.pressure_WP UW O <>0 O ==0 SPB m087 BEA m086: L "DI OUT PRS".MaDa.Slider_ControlValue T "DI OUT P03".HC800.Support.pressure_WP |
|
|
|
|
|
Netzwerk 8: HC802 Stow pin Execute manual operation m085: U "HMI KEY".P03.HC802.F1_HP U "HMI KEY".P03.HC802.Enbl_HP = "HMI KEY".P03.HC802.Manual_Jog_output_HP
U "HMI KEY".P03.HC802.F2_WP U "HMI KEY".P03.HC802.Enbl_WP = "HMI KEY".P03.HC802.Manual_Jog_output_WP |
|
|
|
|
|
Netzwerk 9: HC800 Slide table Execute manual operation U "HMI KEY".P03.HC800.F1_HP U "HMI KEY".P03.HC800.Enbl_HP = "HMI KEY".P03.HC800.Manual_Jog_output_HP
U "HMI KEY".P03.HC800.F2_WP U "HMI KEY".P03.HC800.Enbl_WP = "HMI KEY".P03.HC800.Manual_Jog_output_WP |
|
|
FB56 OUT P03 : Slide Table outputs |
|
|
|
|
|
Netzwerk 1: P03 Pre-Setting O "M00 Auto CmpltMa run" O "M03 RunHomPos" = #tmp_cmd_seq_onoff |
|
|
|
|
|
Netzwerk 2: HC802 Stow pin slide table U "M03 HC802 SEQ run WP" U #tmp_cmd_seq_onoff O "HMI KEY".P03.HC802.Manual_Jog_output_WP UN "E03 HC802 B54 WP" = "A03 HC802 Y802 WP"
O #HC800.Support.CMD_HP O #HC800.Support.CMD_WP U #tmp_cmd_seq_onoff O "HMI KEY".P03.HC802.Manual_Jog_output_HP UN "E03 HC802 B55 HP" = "A03 HC802 Y803 HP" |
|
|
|
|
|
Netzwerk 3: HC800 Slide table WP U "M03 HC800 SEQ run WP" U #tmp_cmd_seq_onoff O "HMI KEY".P03.HC800.Manual_Jog_output_WP = #HC800.Support.CMD_WP
U #HC800.Support.CMD_WP U "E03 HC802 B55 HP" UN "E03 HC800 B52 WP" L #HC800.Support.DlyOnOff SA "T03 HC800 WP SA" U "T03 HC800 WP SA" = "A03 HC800 Y800 WP" |
|
|
|
|
|
Netzwerk 4: HC800 Slide table HP U "M03 HC800 SEQ run HP" U #tmp_cmd_seq_onoff O "HMI KEY".P03.HC800.Manual_Jog_output_HP = #HC800.Support.CMD_HP
U #HC800.Support.CMD_HP U "E03 HC802 B55 HP" UN "E03 HC800 B50 HP" SA "T03 HC800 HP SA" U "T03 HC800 HP SA" = "A03 HC800 Y801 HP" |
|
|
|
|
|
Netzwerk 5: Exit if not manual mod *** ON "M00 Manu CmpltMa run" ON "M03 Enabled" BEB |
|
|
|
|
|
Netzwerk 6: HC800 Slide table set point HP 0-100% U "A00 Y640 HV HP" SPB m090 L #HC800.Support.speed_HP T "HMI KEY".PRS.YAW280.Int_InOut
L #HC800.Support.pressure_HP T "HMI KEY".PRS.YAW286.Int_InOut BEA |
|
|
|
|
|
Netzwerk 7: HC800 Slide table set point WP 0-100% m090: L #HC800.Support.MaPa.Speed_low O "E03 HC800 B53 slow WP" O "E03 HC800 B51 slow HP" SPB m101 L #HC800.Support.speed_WP m101: T "HMI KEY".PRS.YAW280.Int_InOut
L #HC800.Support.pressure_WP T "HMI KEY".PRS.YAW286.Int_InOut |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
