OB1 Main Main Program Sweep







Network 1: Start measuring runtime (Start Cycle)

    "HMI SYS".Support.LastCycle := RUNTIME("HMI SYS".Support.LastCycle_inout);







Network 2: Pulse generator

    "HMI SYS".Support.Sav_Clock_Byte := "HMI SYS".Support.Sav_Clock_Byte XOR "M01 Clock_Byte";

    "M00 PLC Impulse" := "HMI SYS".Support.Sav_Clock_Byte AND "Clock_Byte";

    "HMI SYS".Support.Sav_Clock_Byte := "M01 Clock_Byte";







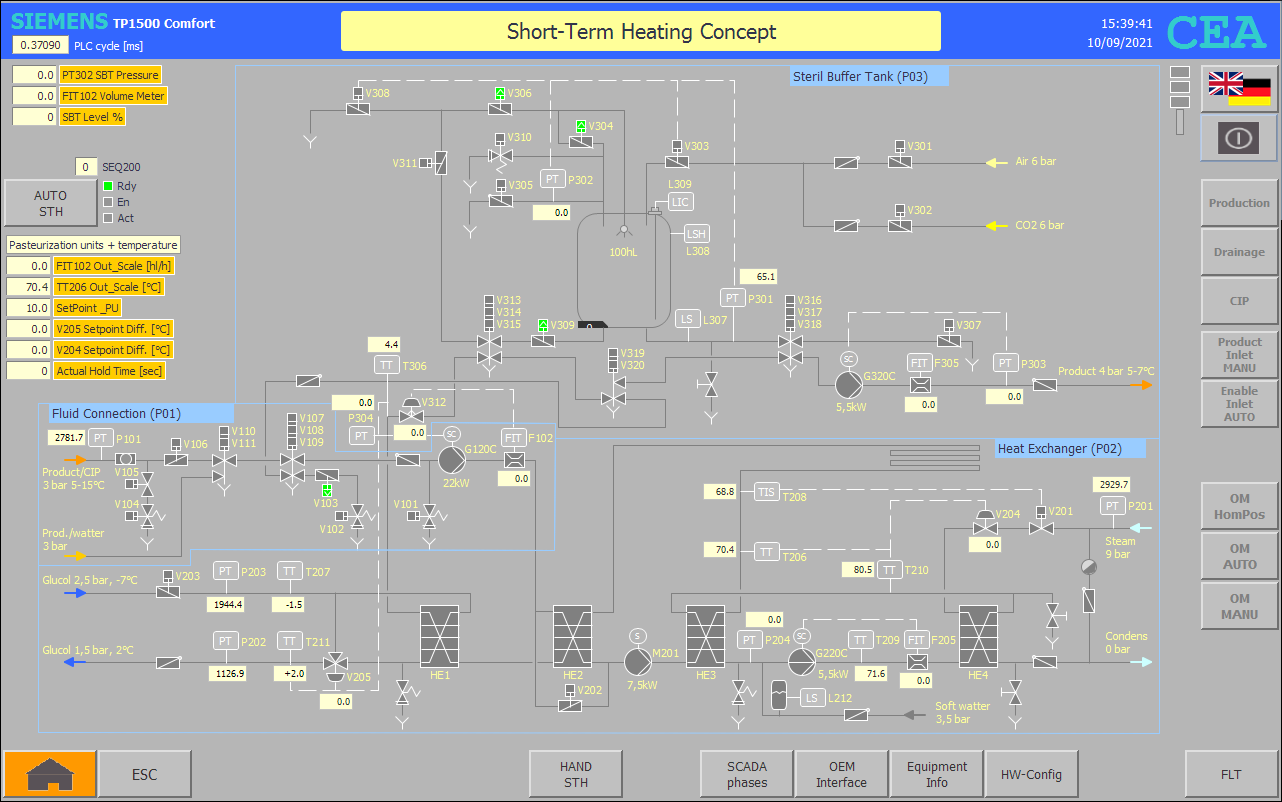

Network 3: CALL distributor

"DI MAIN GLB"(); // Global Operation Mode

//-----

"DI MAIN P01"();

"DI MAIN P02"();

"DI MAIN P03"();

//-----

"DI OUT P01"(); // Fluid Connection

"DI OUT P02"(); // Heat Exchanger

"DI OUT P03"(); // Sterile Buffer Tank







Network 4: First cycle evaluation

"HMI SYS".Support.FirstCycle_TON(IN := TRUE,PT := t#2s);

"M00 OB1 FirstCycle" := "HMI SYS".Support.FirstCycle_TON.Q;







Network 5: Flag logic =0

    "M00 log 0" := FALSE;

    "M00 log 1" := TRUE;







Network 6: End measuring runtime (End Cycle)

"HMI SYS".Support.LastCycle_real := LREAL_TO_REAL(IN := RUNTIME("HMI SYS".Support.LastCycle_inout) * 1000.0);
