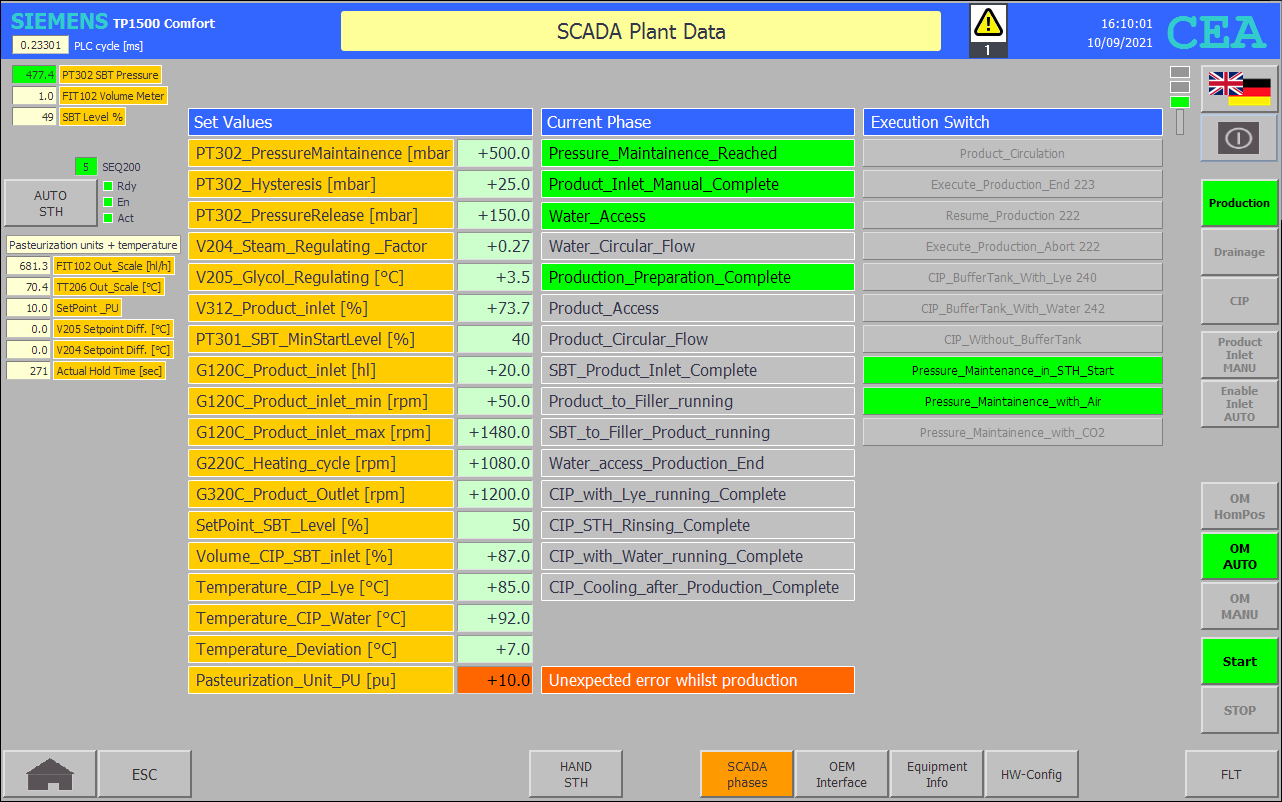

OB30  Cyclic interrupt :  Cyclic interrupt every 100 ms

Network 1: V204 Steam regulating valve - PID_Compact

"DI OUT P02".V204.Input := "DI OUT P02".TT210.Support.Out_Scale - "DI OUT P02".TT206.Support.Out_Scale;

"+2-V204"(Input := "DI OUT P02".V204.Input,

          Setpoint := "DI OUT P02".V204.Setpoint, // difference

          Input_PER := "DI OUT P02".V204.Input_PER,

          Disturbance:="DI OUT P02".V204.Disturbance,

          ManualEnable:="DI OUT P02".V204.ManualEnable,

          ManualValue := "DI OUT P02".V204.ManualValue,

          ErrorAck := "DI MAIN GLB".P00.FLT_CmpltMaACK_REg,

          Reset := "DI OUT P02".V204.Reset,

          ModeActivate:="DI OUT P02".V204.ModeActivate,

          ScaledInput=>"DI OUT P02".V204.ScaledInput,

          Output => "DI OUT P02".V204.Output,

          Output_PER => "DI OUT P02".V204.Output_PER,

          Output_PWM => "DI OUT P02".V204.Output_PWM,

          SetpointLimit_H => "DI OUT P02".V204.SetpointLimit_H,

          SetpointLimit_L => "DI OUT P02".V204.SetpointLimit_L,

          InputWarning_H => "DI OUT P02".V204.InputWarning_H,

          InputWarning_L => "DI OUT P02".V204.InputWarning_L,

          State => "DI OUT P02".V204.State,

          Error => #tmp_llo,//"DI OUT P02".V204.Error,

          ErrorBits => "DI OUT P02".V204.ErrorBits,

          Mode:="DI OUT P02".V204.Mode); // 3= Auto Mode, 4= Manual Mode

IF #tmp_llo THEN // Error capture

    "DI OUT P02".V204.Error := TRUE;

END_IF;

Network 2: V205 Glycol regulating valve - PID_Compact

"DI OUT P02".V205.Input := "DI OUT P03".TT306.Support.Out_Scale - "DI OUT P02".TT211.Support.Out_Scale;

"+2-V205"(Input := "DI OUT P02".V205.Input,

          Setpoint := "DI OUT P02".V205.Setpoint, // difference

          Input_PER := "DI OUT P02".V205.Input_PER,

          Disturbance:="DI OUT P02".V205.Disturbance,

          ManualEnable:="DI OUT P02".V205.ManualEnable,

          ManualValue := "DI OUT P02".V205.ManualValue,

          ErrorAck := "DI MAIN GLB".P00.FLT_CmpltMaACK_REg,

          Reset := "DI OUT P02".V205.Reset,

          ModeActivate:="DI OUT P02".V205.ModeActivate,

          ScaledInput=>"DI OUT P02".V205.ScaledInput,

          Output => "DI OUT P02".V205.Output,

          Output_PER => "DI OUT P02".V205.Output_PER,

          Output_PWM => "DI OUT P02".V205.Output_PWM,

          SetpointLimit_H => "DI OUT P02".V205.SetpointLimit_H,

          SetpointLimit_L => "DI OUT P02".V205.SetpointLimit_L,

          InputWarning_H => "DI OUT P02".V205.InputWarning_H,

          InputWarning_L => "DI OUT P02".V205.InputWarning_L,

          State => "DI OUT P02".V205.State,

          Error => #tmp_llo,//"DI OUT P02".V205.Error,

          ErrorBits => "DI OUT P02".V205.ErrorBits,

          Mode:="DI OUT P02".V205.Mode); // 3= Auto Mode, 4= Manual Mode

IF #tmp_llo THEN // Error capture

    "DI OUT P02".V205.Error := TRUE;

END_IF;

Network 3: V312 Product inlet regulating valve - PID_Compact

"+3-V312"(Setpoint := "DI OUT P03".V312.Setpoint,

          Input := "DI OUT P03".V312.Input,

          Input_PER := "DI OUT P03".V312.Input_PER,

          Disturbance:="DI OUT P03".V312.Disturbance,

          ManualEnable:="DI OUT P03".V312.ManualEnable,

          ManualValue := "DI OUT P03".V312.ManualValue,

          ErrorAck := "DI MAIN GLB".P00.FLT_CmpltMaACK_REg,

          Reset := "DI OUT P03".V312.Reset,

          ModeActivate:="DI OUT P03".V312.ModeActivate,

          ScaledInput=>"DI OUT P03".V312.ScaledInput,

          Output => "DI OUT P03".V312.Output,

          Output_PER => "DI OUT P03".V312.Output_PER,

          Output_PWM => "DI OUT P03".V312.Output_PWM,

          SetpointLimit_H => "DI OUT P03".V312.SetpointLimit_H,

          SetpointLimit_L => "DI OUT P03".V312.SetpointLimit_L,

          InputWarning_H => "DI OUT P03".V312.InputWarning_H,

          InputWarning_L => "DI OUT P03".V312.InputWarning_L,

          State => "DI OUT P03".V312.State,

          Error => #tmp_llo,//"DI OUT P03".V312.Error,

          ErrorBits => "DI OUT P03".V312.ErrorBits,

          Mode:="DI OUT P03".V312.Mode); // 3= Auto Mode, 4= Manual Mode

IF #tmp_llo THEN // Error capture

    "DI OUT P03".V312.Error := TRUE;

END_IF;
