FB57 FLT P03 : Two Aisle Automated Small Parts Storage Faults



Plausibility check. If the transfer impossible, a fault message will be triggered when depth > 4 or conveyor is loaded but box-data value HBS = 0



Netzwerk 41: 2_FLT_X14 No start posible



#"2_FAULT_00_15".%X14 :=

"DatOfMod".BoxData_30M5.Trgt_Storage.HBS = 1 AND "DatOfMod".BoxData_30M2.Trgt_Storage.HBS = 2

OR "DatOfMod".BoxData_30M4.Trgt_Storage.HBS = 1 AND "DatOfMod".BoxData_30M3.Trgt_Storage.HBS = 2

OR "DatOfMod".BoxData_30M3.Trgt_Storage.HBS = 1 AND "DatOfMod".BoxData_30M2.Trgt_Storage.HBS = 2

OR "DatOfMod".BoxData_30M5.Trgt_Storage.HBS = 1 AND "DatOfMod".BoxData_30M4.Trgt_Storage.HBS = 2

OR "DatOfMod".BoxData_30M5.Trgt_Storage.HBS = 1 AND "DatOfMod".BoxData_30M3.Trgt_Storage.HBS = 2

OR "DatOfMod".BoxData_30M4.Trgt_Storage.HBS = 1 AND "DatOfMod".BoxData_30M2.Trgt_Storage.HBS = 2

OR "DatOfMod".BoxData_30M2.BoxCode <> '----' AND ("DatOfMod".BoxData_30M2.Trgt_Storage.HBS = 0 OR "DatOfMod".BoxData_30M2.Trgt_Storage.Depth = 0)

OR "DatOfMod".BoxData_30M3.BoxCode <> '----' AND ("DatOfMod".BoxData_30M3.Trgt_Storage.HBS = 0 OR "DatOfMod".BoxData_30M3.Trgt_Storage.Depth = 0)

OR "DatOfMod".BoxData_30M4.BoxCode <> '----' AND ("DatOfMod".BoxData_30M4.Trgt_Storage.HBS = 0 OR "DatOfMod".BoxData_30M4.Trgt_Storage.Depth = 0)

OR "DatOfMod".BoxData_30M5.BoxCode <> '----' AND ("DatOfMod".BoxData_30M5.Trgt_Storage.HBS = 0 OR "DatOfMod".BoxData_30M5.Trgt_Storage.Depth = 0)

OR "DatOfMod".BoxData_30M2.Trgt_Storage.Depth > 4

OR "DatOfMod".BoxData_30M3.Trgt_Storage.Depth > 4

OR "DatOfMod".BoxData_30M4.Trgt_Storage.Depth > 4

OR "DatOfMod".BoxData_30M5.Trgt_Storage.Depth > 4;



CEA Software Development

During conveyor loading the box-codes are automatically scanned, and copied into so-called "box-data". If one of the box-data 1 to 4 is not plausible, the entire order is then declared not valid. In this case the storing procedure will stop.

CEA Software Development

Each data-box holds: company initial, storing place number, storing depth, HBS1 or HBS2, goods weight, and a storage box type (large/small).

The complete data-boxes can be cancelled if needed.

High-Bay-Storage 2

High-Bay-Storage 2

30M5

30M4

30M3

30M2

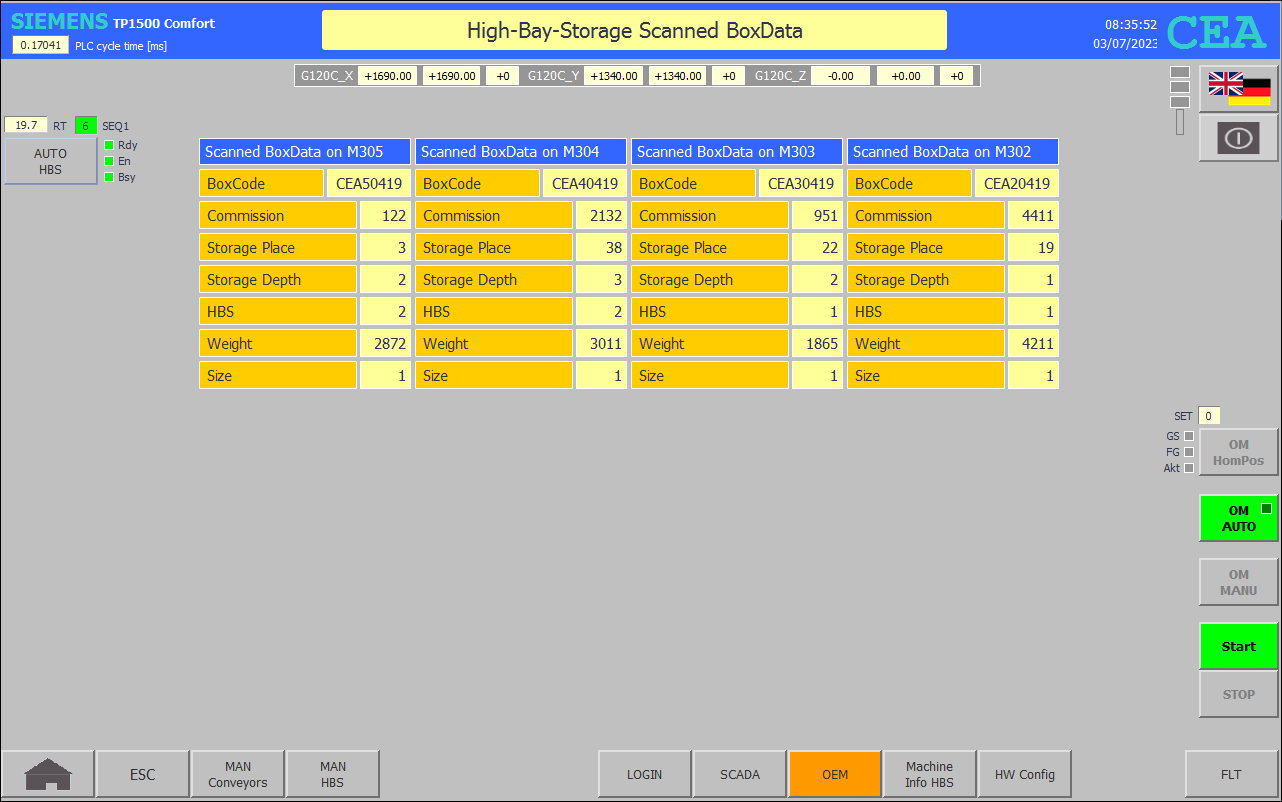

This figure illustrates a no-go situation
