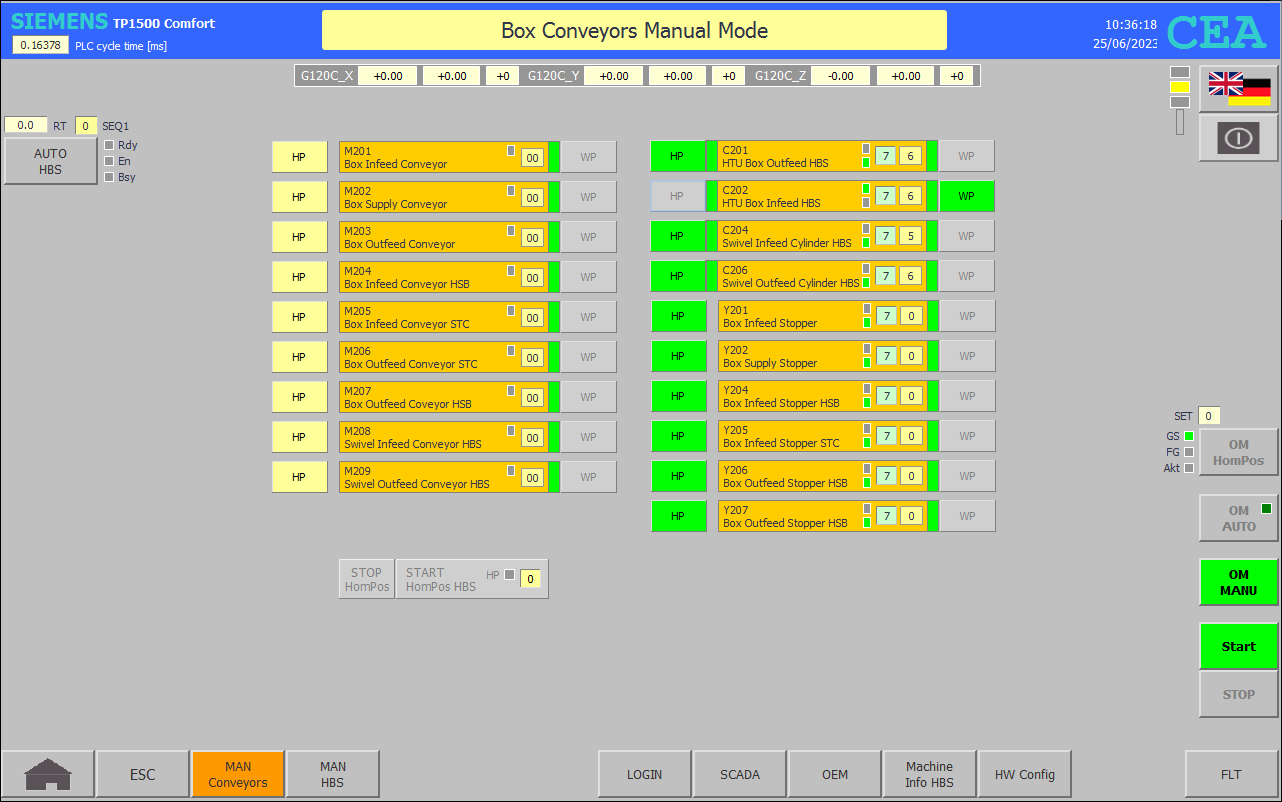

FB48 MANU P02 :  Manual mode

Netzwerk 1: M201 Box Infeed Conveyor - enable

"HMI KEY".P02.M201.F12_Enable_WP := NOT ("DI OUT P02".M201.HALT_01 OR  "DI OUT P02".M201.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M201.F12_Enable_WP OR"HMI KEY".P02.M201.F1_HP OR"DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M201.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 2: M202 Box Supply Conveyor - enable

"HMI KEY".P02.M202.F12_Enable_WP := NOT ("DI OUT P02".M202.HALT_01 OR "DI OUT P02".M202.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M202.F12_Enable_WP OR "HMI KEY".P02.M202.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M202.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 3: M203 Box Outfeed Conveyor - enable

"HMI KEY".P02.M203.F12_Enable_WP := NOT ("DI OUT P02".M203.HALT_01 OR "DI OUT P02".M203.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02."M203".F12_Enable_WP OR "HMI KEY".P02."M203".F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M203.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 4: M204 Box Infeed Conveyor HSB - enable

"HMI KEY".P02.M204.F12_Enable_WP := NOT ("DI OUT P02".M204.HALT_01 OR "DI OUT P02".M204.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M204.F12_Enable_WP OR "HMI KEY".P02.M204.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M204.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 5: M205 Box Infeed Conveyor STC - enable

"HMI KEY".P02.M205.F12_Enable_WP := NOT ("DI OUT P02".M205.HALT_01 OR "DI OUT P02".M205.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M205.F12_Enable_WP OR"HMI KEY".P02.M205.F1_HP OR"DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M205.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 6: M206 Box Outfeed Conveyor STC - enable

"HMI KEY".P02.M206.F12_Enable_WP := NOT ("DI OUT P02".M206.HALT_01 OR "DI OUT P02".M206.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M206.F12_Enable_WP OR "HMI KEY".P02.M206.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M206.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 7: M207 Box Outfeed Coveyor HSB - enable

"HMI KEY".P02.M207.F12_Enable_WP := NOT ("DI OUT P02".M207.HALT_01 OR "DI OUT P02".M207.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M207.F12_Enable_WP OR "HMI KEY".P02.M207.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M207.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 8: M208 Swivel Infeed Conveyor HBS - enable

"HMI KEY".P02.M208.F12_Enable_WP := NOT ("DI OUT P02".M208.HALT_01 OR "DI OUT P02".M208.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M208.F12_Enable_WP OR "HMI KEY".P02.M208.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M208.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 9: M209 Swivel Outfeed Conveyor HBS - enable

"HMI KEY".P02.M209.F12_Enable_WP := NOT ("DI OUT P02".M209.HALT_01 OR "DI OUT P02".M209.Com_FLT);

// Manual off switching

IF NOT "HMI KEY".P02.M209.F12_Enable_WP OR "HMI KEY".P02.M209.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN

    "DI OUT P02".M209.DRV.ActorJog_WP := FALSE;

END_IF;

Netzwerk 10: C201 HTU Box Outfeed HBS - enable

"HMI KEY".P02.C201.F11_Enable_HP :=

"HMI KEY".P02.C201.F12_Enable_WP := NOT "DI OUT P02".C201.Com_FLT AND "DI OUT P02".C201.RLS;

Netzwerk 11: C202 HTU Box Infeed HBS - enable

"HMI KEY".P02.C202.F11_Enable_HP :=

"HMI KEY".P02.C202.F12_Enable_WP := NOT "DI OUT P02".C202.Com_FLT AND "DI OUT P02".C202.RLS;

Netzwerk 12: C204 Swivel Infeed Cylinder HBS - enable

"HMI KEY".P02.C204.F11_Enable_HP :=

"HMI KEY".P02.C204.F12_Enable_WP := NOT "DI OUT P02".C204.Com_FLT AND "DI OUT P02".C204.RLS;

Netzwerk 13: C206 Swivel Outfeed Cylinder HBS - enable

"HMI KEY".P02.C206.F11_Enable_HP :=

"HMI KEY".P02.C206.F12_Enable_WP := NOT "DI OUT P02".C206.Com_FLT AND "DI OUT P02".C206.RLS;

Netzwerk 14: Y201 Box Infeed Stopper - enable

"HMI KEY".P02.Y201.F12_Enable_WP := "DI OUT P02".Y201.RLS AND NOT "DI OUT P02".Y201.Com_FLT;

Netzwerk 15: Y202 Box Supply Stopper - enable

"HMI KEY".P02.Y202.F12_Enable_WP := "DI OUT P02".Y202.RLS AND NOT "DI OUT P02".Y202.Com_FLT;

Netzwerk 16: Y204 Box Infeed Stopper HSB - enable

"HMI KEY".P02.Y204.F12_Enable_WP := "DI OUT P02".Y204.RLS AND NOT "DI OUT P02".Y204.Com_FLT;

Netzwerk 17: Y205 Box Infeed Stopper STC - enable

"HMI KEY".P02.Y205.F12_Enable_WP := "DI OUT P02".Y205.RLS AND NOT "DI OUT P02".Y205.Com_FLT;

Netzwerk 18: Y206 Box Outfeed Stopper HSB - enable

"HMI KEY".P02.Y206.F12_Enable_WP := "DI OUT P02".Y206.RLS AND NOT "DI OUT P02".Y206.Com_FLT;

Netzwerk 19: Y207 Box Outfeed Stopper HSB - enable

"HMI KEY".P02.Y207.F12_Enable_WP := "DI OUT P02".Y207.RLS AND NOT "DI OUT P02".Y207.Com_FLT;

Netzwerk 20: Monitoring manual operation ***

IF NOT #ST_MANU THEN

    RETURN;

ELSIF #MODULE_HP AND NOT #Support.HomPos_REg THEN

    "DI MAIN P02".M00.Init := TRUE;

END_IF;

#Support.HomPos_REg := #MODULE_HP;

"DI MAIN P02".M00.TOF_ModuleOFF_Pulse(IN := NOT #SUPPORT_SEQ AND #Support.HomPos_FEg,

PT := t#500ms);

#Support.HomPos_FEg := #SUPPORT_SEQ;

IF #SUPPORT_SEQ THEN

    RETURN;

END_IF;

Netzwerk 21: M203 Box Infeed Conveyor - execute

IF "HMI KEY".P02.M201.F2_WP THEN

    "DI OUT P02".M201.DRV.ActorJog_WP := "HMI KEY".P02.M201.F12_Enable_WP;

END_IF;

Netzwerk 22: M202 Box Supply Conveyor - execute

IF "HMI KEY".P02.M202.F2_WP THEN

    "DI OUT P02".M202.DRV.ActorJog_WP := "HMI KEY".P02.M202.F12_Enable_WP;

END_IF;

Netzwerk 23: M203 Box Outfeed Conveyor - execute

IF "HMI KEY".P02.M203.F2_WP THEN

    "DI OUT P02".M203.DRV.ActorJog_WP := "HMI KEY".P02.M203.F12_Enable_WP;

END_IF;

Netzwerk 24: M204 Box Infeed Conveyor HSB - execute

IF "HMI KEY".P02.M204.F2_WP THEN

    "DI OUT P02".M204.DRV.ActorJog_WP := "HMI KEY".P02.M204.F12_Enable_WP;

END_IF;

Netzwerk 25: M205 Box Infeed Conveyor STC - execute

IF "HMI KEY".P02.M205.F2_WP THEN

    "DI OUT P02".M205.DRV.ActorJog_WP := "HMI KEY".P02.M205.F12_Enable_WP;

END_IF;

Netzwerk 26: M206 Box Outfeed Conveyor STC - execute

IF "HMI KEY".P02.M206.F2_WP THEN

    "DI OUT P02".M206.DRV.ActorJog_WP := "HMI KEY".P02.M206.F12_Enable_WP;

END_IF;

Netzwerk 27: M207 Box Outfeed Coveyor HSB - execute

IF "HMI KEY".P02.M207.F2_WP THEN

    "DI OUT P02".M207.DRV.ActorJog_WP := "HMI KEY".P02.M207.F12_Enable_WP;

END_IF;

Netzwerk 28: M208 Swivel Infeed Conveyor HBS - execute

IF "HMI KEY".P02.M208.F2_WP THEN

    "DI OUT P02".M208.DRV.ActorJog_WP := "HMI KEY".P02.M208.F12_Enable_WP;

END_IF;

Netzwerk 29: M209 Swivel Outfeed Conveyor HBS - execute

IF "HMI KEY".P02.M209.F2_WP THEN

    "DI OUT P02".M209.DRV.ActorJog_WP := "HMI KEY".P02.M209.F12_Enable_WP;

END_IF;

Netzwerk 30: C201 HTU Box Outfeed HBS - execute

"DI OUT P02".C201.VLV_OC.CmdExe_WP := "HMI KEY".P02.C201.F12_Enable_WP

AND NOT "HMI KEY".P02.C201.F1_HP AND ("HMI KEY".P02.C201.F2_WP OR "DI OUT P02".C201.FB_WP);

"DI OUT P02".C201.VLV_OC.CmdExe_HP := "HMI KEY".P02.C201.F11_Enable_HP

AND NOT "HMI KEY".P02.C201.F2_WP AND ("HMI KEY".P02.C201.F1_HP OR "DI OUT P02".C201.FB_HP);

Netzwerk 31: C202 HTU Box Infeed HBS - execute

"DI OUT P02".C202.VLV_OC.CmdExe_WP := "HMI KEY".P02.C202.F12_Enable_WP

AND NOT "HMI KEY".P02.C202.F1_HP AND ("HMI KEY".P02.C202.F2_WP OR "DI OUT P02".C202.FB_WP);

"DI OUT P02".C202.VLV_OC.CmdExe_HP := "HMI KEY".P02.C202.F11_Enable_HP

AND NOT "HMI KEY".P02.C202.F2_WP AND ("HMI KEY".P02.C202.F1_HP OR "DI OUT P02".C202.FB_HP);

Netzwerk 32: C204 Swivel Infeed Cylinder HBS - execute

"DI OUT P02".C204.VLV_OC.CmdExe_WP := "HMI KEY".P02.C204.F12_Enable_WP

AND NOT "HMI KEY".P02.C204.F1_HP AND ("HMI KEY".P02.C204.F2_WP OR "DI OUT P02".C204.FB_WP);

"DI OUT P02".C204.VLV_OC.CmdExe_HP := "HMI KEY".P02.C204.F11_Enable_HP

AND NOT "HMI KEY".P02.C204.F2_WP AND ("HMI KEY".P02.C204.F1_HP OR "DI OUT P02".C204.FB_HP);

Netzwerk 33: C206 Swivel Outfeed Cylinder HBS - execute

"DI OUT P02".C206.VLV_OC.CmdExe_WP := "HMI KEY".P02.C206.F12_Enable_WP

AND NOT "HMI KEY".P02.C206.F1_HP AND ("HMI KEY".P02.C206.F2_WP OR "DI OUT P02".C206.FB_WP);

"DI OUT P02".C206.VLV_OC.CmdExe_HP := "HMI KEY".P02.C206.F11_Enable_HP

AND NOT "HMI KEY".P02.C206.F2_WP AND ("HMI KEY".P02.C206.F1_HP OR "DI OUT P02".C206.FB_HP);

Netzwerk 34: Y201 Box Infeed Stopper - execute

"DI OUT P02".Y201.VLV_O.CmdExe_WP := "HMI KEY".P02.Y201.F12_Enable_WP

AND NOT "HMI KEY".P02.Y201.F1_HP AND ("HMI KEY".P02.Y201.F2_WP OR "DI OUT P02".Y201.FB_WP);

Netzwerk 35: Y202 Box Supply Stopper - execute

"DI OUT P02".Y202.VLV_O.CmdExe_WP := "HMI KEY".P02.Y202.F12_Enable_WP

AND NOT "HMI KEY".P02.Y202.F1_HP AND ("HMI KEY".P02.Y202.F2_WP OR "DI OUT P02".Y202.FB_WP);

Netzwerk 36: Y204 Box Infeed Stopper HSB - execute

"DI OUT P02".Y204.VLV_O.CmdExe_WP := "HMI KEY".P02.Y204.F12_Enable_WP

AND NOT "HMI KEY".P02.Y204.F1_HP AND ("HMI KEY".P02.Y204.F2_WP OR "DI OUT P02".Y204.FB_WP);

Netzwerk 37: Y205 Box Infeed Stopper STC - execute

"DI OUT P02".Y205.VLV_O.CmdExe_WP := "HMI KEY".P02.Y205.F12_Enable_WP

AND NOT "HMI KEY".P02.Y205.F1_HP AND ("HMI KEY".P02.Y205.F2_WP OR "DI OUT P02".Y205.FB_WP);

Netzwerk 38: Y206 Box Outfeed Stopper HSB - execute

"DI OUT P02".Y206.VLV_O.CmdExe_WP := "HMI KEY".P02.Y206.F12_Enable_WP

AND NOT "HMI KEY".P02.Y206.F1_HP AND ("HMI KEY".P02.Y206.F2_WP OR "DI OUT P02".Y206.FB_WP);

Netzwerk 39: Y207 Box Outfeed Stopper HSB - execute

"DI OUT P02".Y207.VLV_O.CmdExe_WP := "HMI KEY".P02.Y207.F12_Enable_WP

AND NOT "HMI KEY".P02.Y207.F1_HP AND ("HMI KEY".P02.Y207.F2_WP OR "DI OUT P02".Y207.FB_WP);
