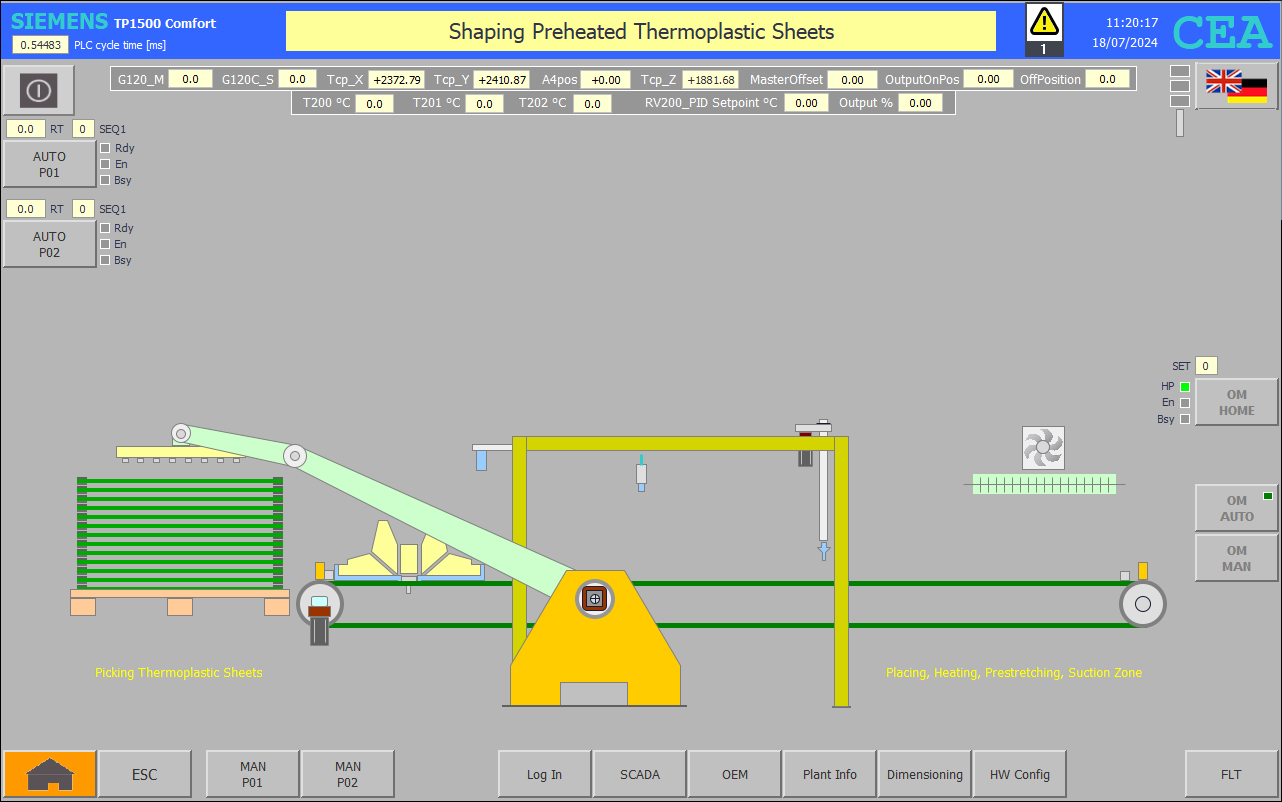

OB1 Main : Programme Sweep (cycle)







Network 1: Start measuring runtime (=LastCycle)

"HMI SYS".Support.LastCycle := RUNTIME("HMI SYS".Support.LastCycle_inout);







Network 2: Pulse generator

"HMI SYS".Support.Sav_Clock_Byte := "HMI SYS".Support.Sav_Clock_Byte XOR "M00_Clock_Byte";

"M00_Imp_Byte" := "HMI SYS".Support.Sav_Clock_Byte AND "M00_Clock_Byte";

"HMI SYS".Support.Sav_Clock_Byte := "M00_Clock_Byte";







Network 3: CALL distributor

"DI MAIN GLB"(); // Operation mode global plant

"DI MAIN P01"();

"DI MAIN P02"();

// ——-

"DI OUT P01"(); // Assign output stage

"DI OUT P02"(); // Assign output stage







Network 4: Create delayed first cycle flag

"HMI SYS".Support.FirstCycle_TON(IN := TRUE,

                                 PT := t#2s);

"M00_OB1_FirstCycle" := "HMI SYS".Support.FirstCycle_TON.Q;







Network 5: End measuring runtime (=LastCycle)

"HMI SYS".Support.LastCycle_real := LREAL_TO_REAL(IN := RUNTIME("HMI SYS".Support.LastCycle_inout));
