FB32 SEQ1 P01 Articulated Arm







Network 1: Pre-Setting

"DI MAIN P01".M00.RdyToStart := "DI MAIN GLB".M00.HomPosSR AND "DI MAIN GLB".M00.AutoCmpltMa_run;







Network 2: Define last step

#SSM(LAST_STEP := 20);

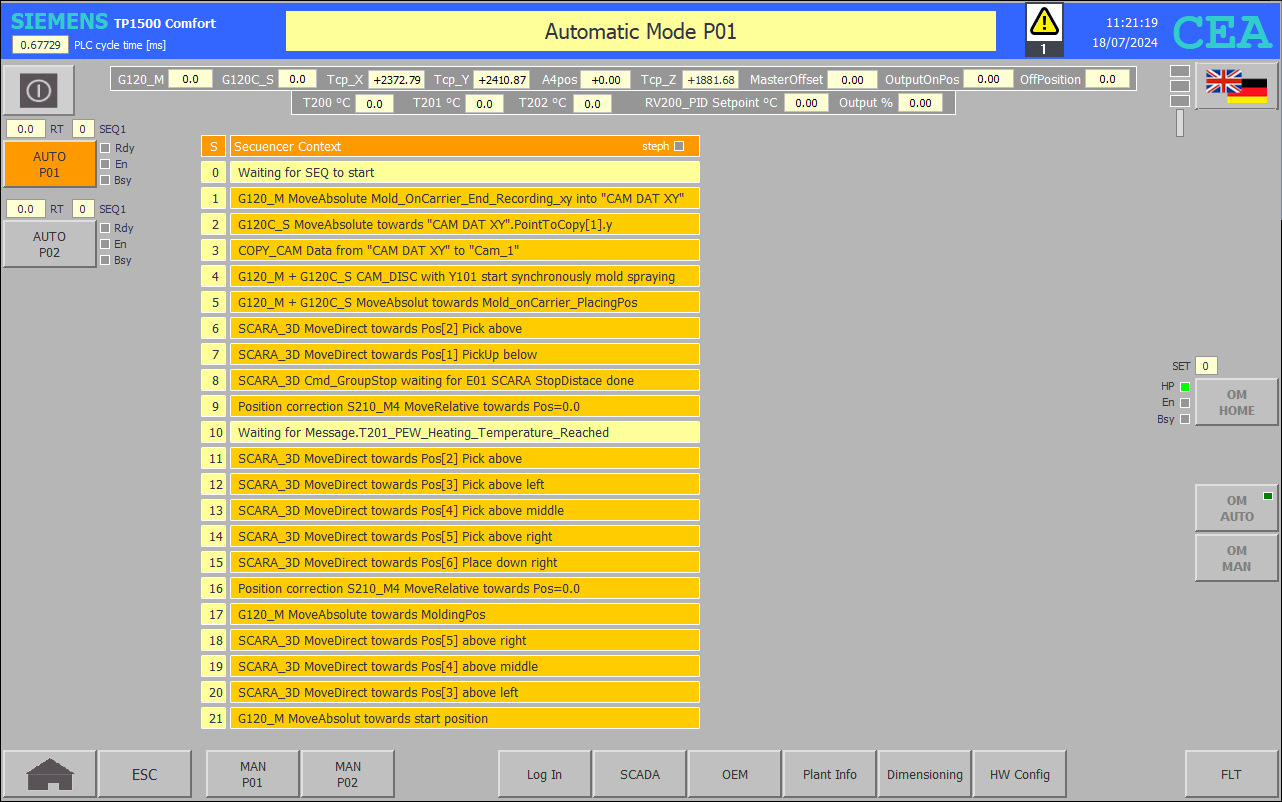

Network 3: Step Switching Mechanism (SSM)

CASE #SSM.S.stepact OF

    0: // Waiting for SEQ to start

        "DI MAIN P01".M00.SEQ1_Busy := FALSE;

        IF #SSM.S.steps THEN

            #SSM.S.stepd := "DI MAIN P01".M00.RdyToStart;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.CoordSystem := 0;

            #RunTimeCounter := 0;

            "DI OUT P01".CAM_DISC.CAM.MC_MeasuringInput.MeasuredValue1 := "DI OUT P01".CAM_DISC.CAM.MC_MeasuringInput.MeasuredValue2 := 0.0;

        END_IF;



    1: // G120_M MoveAbsolute Mold_OnCarrier_End_Recording_xy into "CAM DAT XY"

        IF #SSM.S.stepfc THEN

            "DI MAIN P01".M00.SEQ1_Busy := TRUE;

            "DI OUT P01".G120_M.DRV.Support.SetVelo := "HMI KEY".SetValues.Linear_Axis_Middle;

            "DI OUT P01".G120_M.DRV.MC_MoveAbsolute.Position := "HMI KEY".CamDisc_Machine.Mold_OnCarrier_End_Recording_xy;

        ELSE

            #SSM.S.stepd := "DI OUT P01".G120_M.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".G120_M.DRV.Support.Cmd_MoveAbsolute := "DI OUT P01".G120_M.DRV.Support.Epos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    2: // G120C_S MoveAbsolute towards "CAM DAT XY".PointToCopy[1].y

        IF #SSM.S.stepfc THEN

            "DI OUT P01".G120C_S.DRV.Support.SetVelo := "HMI KEY".SetValues.Linear_Axis_Middle;

            "DI OUT P01".G120C_S.DRV.MC_MoveAbsolute.Position := "HMI KEY".CamDisc_Machine.Mold_onCarrier_StartSpraying_y := "CAM DAT XY".PointToCopy[1].y;

        ELSE

            #SSM.S.stepd := "DI OUT P01".G120C_S.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".G120C_S.DRV.Support.Cmd_MoveAbsolute := "DI OUT P01".G120C_S.DRV.Support.Epos_Enabled AND "DI OUT P01".COPY_CAM.CAM.Support.ReadyTo_ReStart

            AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    3: // COPY_CAM Data from "CAM DAT XY" to "Cam_1"

        #SSM.S.stepd := "DI OUT P01".COPY_CAM.CAM.Support.ReadyTo_ReStart;

        "DI OUT P01".COPY_CAM.CAM.Support.Cmd_CopyCam := "HMI KEY".P01.CAM_COPY.F12_Enable_WP AND NOT (#SSM.S.stepd OR #SSM.S.steplo);



    4: // G120_M + G120C_S CAM_DISC with Y101 start synchronously mold spraying

        IF #SSM.S.stepfc THEN

            "DI OUT P01".G120_M.DRV.Support.SetVelo := "HMI KEY".SetValues.Linear_Axis_Middle;

        END_IF;

        #SSM.S.stepd := "DI OUT P01".CAM_DISC.CAM.MC_OutputCam.Busy;

        "DI OUT P01".G120_M.DRV.Support.Cmd_MoveJogWP := "HMI KEY".P01.G120_M.F12_Enable_WP AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        "DI OUT P01".Y101.VLV_O.CmdExe_WP := "HMI KEY".P01.Y101.F12_Enable_WP AND "DI OUT P01".G120_M.DRV.Support.Cmd_MoveJogWP

        AND "DI OUT P01".CAM_DISC.CAM.MC_CamIn.InSync;



    5: // G120_M + G120C_S MoveAbsolut towards Mold_onCarrier_PlacingPos

        IF #SSM.S.stepfc THEN

            "DI OUT P01".G120_M.DRV.Support.SetVelo :=

            "DI OUT P01".G120C_S.DRV.Support.SetVelo := "HMI KEY".SetValues.Linear_Axis_Fast;

            "DI OUT P01".G120_M.DRV.MC_MoveAbsolute.Position := "HMI KEY".CamDisc_Machine.Mold_onCarrier_PlacingPos_x;

            "DI OUT P01".G120C_S.DRV.MC_MoveAbsolute.Position := "HMI KEY".CamDisc_Machine.Mold_onCarrier_PlacingPos_y;

        ELSE

            #SSM.S.stepd := "DI OUT P01".G120_M.DRV.Support.InPos AND "DI OUT P01".G120C_S.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".G120_M.DRV.Support.Cmd_MoveAbsolute := "DI OUT P01".G120_M.DRV.Support.Epos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

            "DI OUT P01".G120C_S.DRV.Support.Cmd_MoveAbsolute := "DI OUT P01".G120C_S.DRV.Support.Epos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    6: // SCARA_3D MoveDirect towards Pos[2] PickUp above

        IF #SSM.S.stepfc THEN

            #Pos_No := 2;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.TransParameter[1] := 0.0;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.VelocityFactor := "HMI KEY".SetValues.SCARA_3D_VelocityFactor_Middle; // 0.07

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    7: // SCARA_3D MoveDirect towards Pos[1] PickUp below

        IF #SSM.S.stepfc THEN

            #Pos_No := 1;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.VelocityFactor := "HMI KEY".SetValues.SCARA_3D_VelocityFactor_Slow; // 0.02

            #SSM.S.c1.start := TRUE;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Active AND NOT #SSM.S.steplo;

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa

            AND #SSM.S.c1.done;

        END_IF;



    8: // SCARA_3D Cmd_GroupStop waiting for E01 SCARA StopDistace done

        #SSM.S.stepd :=

        "DI OUT P01".S120_M1.DRV.Support.LampOFF AND "DI OUT P01".S120_M2.DRV.Support.LampOFF AND "DI OUT P01".S210_M4.DRV.Support.LampOFF

        AND "DI OUT P01".SCARA_3D.KIN.MC_GroupStop.Done AND "E01 SCARA StopDistace";

        "DI OUT P01".SCARA_3D.KIN.Support.Cmd_GroupStop := "E01 SCARA StopDistace" AND NOT #SSM.S.stepd AND #SSM.S.stepa;



    9: // Waiting for Message.T201_PEW_Heating_Temperature_Reached

        "DI OUT P01".Y100.VLV_O.CmdExe_WP := "HMI KEY".P01.Y100.F12_Enable_WP AND "HMI KEY".Message.T201_PEW_Heating_Temperature_Reached AND "E01 SCARA StopDistace";

        #SSM.S.stepd := "DI OUT P01".Y100.FB_WP AND "E01 S214 VaccumOn";



    10: // SCARA_3D MoveDirect towards Pos[2] Pick above

        IF #SSM.S.stepfc THEN

            #Pos_No := 2;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.VelocityFactor := "HMI KEY".SetValues.SCARA_3D_VelocityFactor_Middle;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.Support.InPos AND NOT #SSM.S.steplo AND "E01 SCARA StopDistace";

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    11: // SCARA_3D MoveDirect towards Pos[3] Pick above left

        IF #SSM.S.stepfc THEN

            #Pos_No := 3;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.TransParameter[1] := 326.0;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.Support.InPos AND NOT #SSM.S.steplo AND "E01 SCARA StopDistace";

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    12: // SCARA_3D MoveDirect towards Pos[4] Pick above middle

        IF #SSM.S.stepfc THEN

            #Pos_No := 4;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            #SSM.S.c1.start := TRUE;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Active AND NOT #SSM.S.steplo AND "E01 SCARA StopDistace";

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa

            AND #SSM.S.c1.done;

        END_IF;



    13: // SCARA_3D MoveDirect towards Pos[5] Pick above right

        IF #SSM.S.stepfc THEN

            #Pos_No := 5;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            #SSM.S.c1.start := TRUE;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Active AND NOT #SSM.S.steplo AND "E01 SCARA StopDistace";

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa

            AND #SSM.S.c1.done;

        END_IF;



    14: // SCARA_3D MoveDirect towards Pos[6] Place down right

        IF #SSM.S.stepfc THEN

            #Pos_No := 6;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.VelocityFactor := "HMI KEY".SetValues.SCARA_3D_VelocityFactor_Slow;

        ELSE

            #SSM.S.stepllo := "DI OUT P01".SCARA_3D.KIN.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepllo AND #SSM.S.stepa;

            "DI OUT P01".Y100.VLV_O.CmdExe_WP := NOT #SSM.S.stepllo;

            #SSM.S.stepd := "DI OUT P01".Y100.FB_HP AND NOT ("E01 S214 VaccumOn" OR "E01 SCARA StopDistace");

        END_IF;



    15: // G120_M MoveAbsolute towards MoldingPos

        IF #SSM.S.stepfc THEN

            "DI OUT P01".G120_M.DRV.Support.SetVelo := "HMI KEY".SetValues.Linear_Axis_Slow;

            "DI OUT P01".G120_M.DRV.MC_MoveAbsolute.Position := "HMI KEY".Traversing_Range.Length;

        ELSE

            #SSM.S.stepd := "DI OUT P01".G120_M.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".G120_M.DRV.Support.Cmd_MoveAbsolute := "DI OUT P01".G120_M.DRV.Support.Epos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    16: // SCARA_3D MoveDirect towards Pos[5] above right

        IF #SSM.S.stepfc THEN

            "DI MAIN P01".M00.SEQ1_DoWP1 := TRUE;

            "DI MAIN P01".M00.ProductCounter.GoodParts := "DI MAIN P01".M00.ProductCounter.GoodParts + 1;

            #Pos_No := 5;

            #SSM.S.c1.start := TRUE;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.VelocityFactor := "HMI KEY".SetValues.SCARA_3D_VelocityFactor_Middle;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.Support.Active AND NOT #SSM.S.steplo;

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa

            AND #SSM.S.c1.done;

        END_IF;



    17: // SCARA_3D MoveDirect towards Pos[4] above middle

        IF #SSM.S.stepfc THEN

            #Pos_No := 4;

            #SSM.S.c1.start := TRUE;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.Support.Active AND NOT #SSM.S.steplo;

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa

            AND #SSM.S.c1.done;

        END_IF;



    18: // SCARA_3D MoveDirect towards Pos[3] above left

        IF #SSM.S.stepfc THEN

            #Pos_No := 3;

            "DI OUT P01".SCARA_3D.KIN.MC_MoveDirectAbsolute.Position := "HMI KEY".MoveDirectPos[#Pos_No].WCS;

        ELSE

            #SSM.S.stepd := "DI OUT P01".SCARA_3D.KIN.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".SCARA_3D.KIN.Support.Cmd_MoveDirect_Absolute := "DI OUT P01".SCARA_3D.KIN.Support.KINpos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    19: // G120_M MoveAbsolut towards start position

        IF #SSM.S.stepfc THEN

            "DI OUT P01".G120_M.DRV.Support.SetVelo := "HMI KEY".SetValues.Linear_Axis_Fast;

            "DI OUT P01".G120_M.DRV.MC_MoveAbsolute.Position := 0.0;

        ELSE

            #SSM.S.stepd := "DI OUT P01".G120_M.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".G120_M.DRV.Support.Cmd_MoveAbsolute := "DI OUT P01".G120_M.DRV.Support.Epos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;



    20: // Position correction S210_M4 MoveRelative towards Pos=0.0

        IF #SSM.S.stepfc THEN

            "DI OUT P01".S210_M4.DRV.Support.SetVelo := "HMI KEY".SetValues.Rotary_Axis_Slow;

            IF "DI OUT P01".SCARA_3D.KIN.Support.TcpInWcs.a.Postion > 0.0 THEN

                "DI OUT P01".S210_M4.DRV.MC_MoveRelative.Distance := - "DI OUT P01".SCARA_3D.KIN.Support.TcpInWcs.a.Postion;

            ELSE

                "DI OUT P01".S210_M4.DRV.MC_MoveRelative.Distance := ABS("DI OUT P01".SCARA_3D.KIN.Support.TcpInWcs.a.Postion);

            END_IF;

        ELSE

            "DI MAIN P01".M00.SEQ1_Done := "DI OUT P01".S210_M4.DRV.Support.InPos AND NOT (#SSM.S.steplo OR "DI MAIN P01".M00.SEQ1_DoWP1);

            "DI OUT P01".S210_M4.DRV.Support.Cmd_MoveRelative := "DI OUT P01".S210_M4.DRV.Support.Epos_Enabled AND NOT "DI MAIN P01".M00.SEQ1_Done AND #SSM.S.stepa;

        END_IF;

END_CASE;
