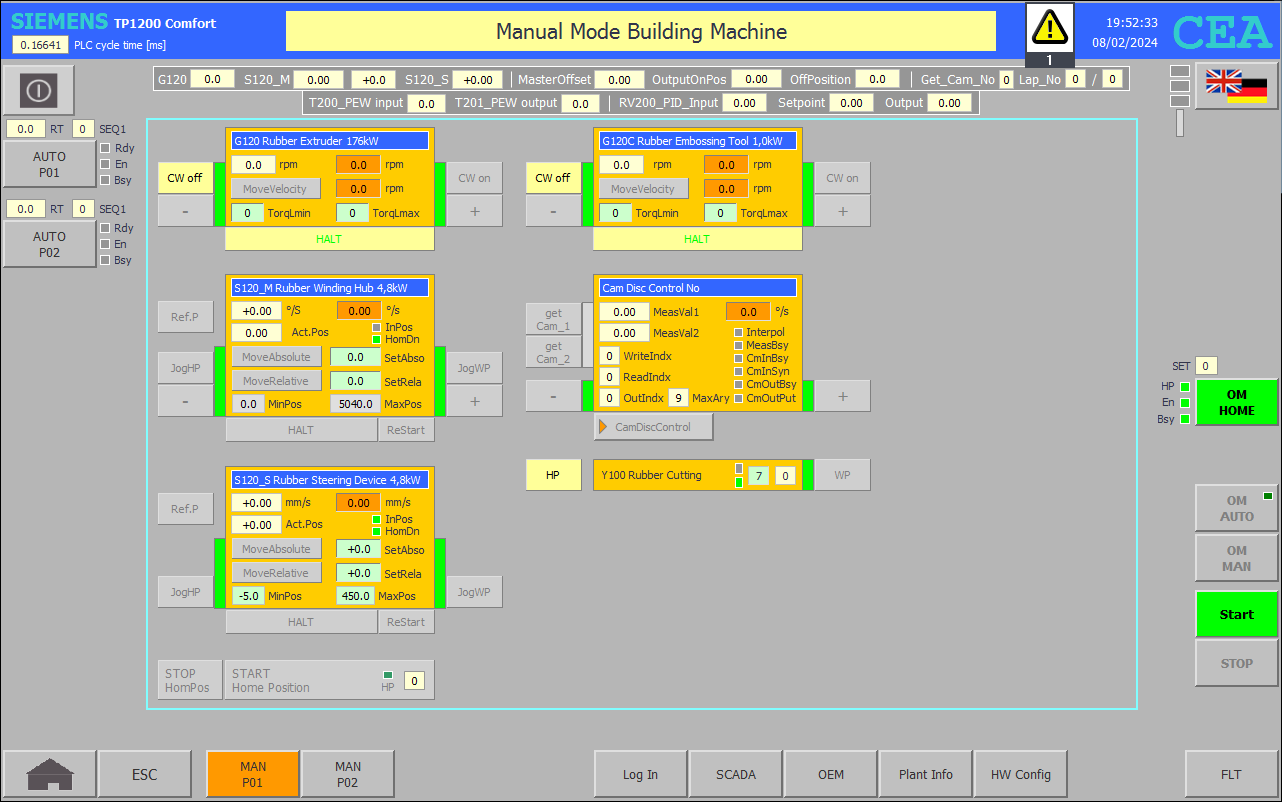

FB31 SET P01 : Move CAM_DISC axis towards home position |
|
|
|
|
|
Netzwerk 1: Query home position "DI MAIN P01".M00.HomPosIS := "DI MAIN P01".SEQ1.Lap_No = 0 AND "DI OUT P01".S120_M.DRV.Support.HomeDone AND "DI OUT P01".S120_S.DRV.Support.HomeDone AND "DI OUT P01".S120_M.DRV.Support.LampOFF AND "DI OUT P01".S120_S.DRV.Support.LampOFF AND "DI OUT P01".G120.DRV.Support.LampOFF AND "DI OUT P01".G120C.DRV.Support.LampOFF AND "DI OUT P01".Y100.FB_HP AND "E00 S120_S LimHP" AND NOT ("HMI KEY".P01.CAM_DISC.F16_Actor_On_WP OR "HMI KEY".P01.CAM_DISC.F15_Actor_On_HP); |
|
|
|
|
|
Netzwerk 2: Define last step #SSM(LAST_STEP := 9); |
|
|
|
|
|
Netzwerk 3: Step Switching Mechanism (SSM) CASE #SSM.S.stepact OF 0: // Waiting for SET to start #SSM.S.stepd := #SSM.S.steps;
1: // Pre-Setting IF #SSM.S.stepfc THEN "DI OUT P01".CAM_DISC.CAM.Support.Cam.Current_Position := #tmp_del_pos; "DI OUT P01".S120_S.DRV.Support.SetVelo := "HMI KEY".SetValues.Homing_Velocity; "DI OUT P01".CAM_DISC.CAM.Support.Write_Index := "DI OUT P01".CAM_DISC.CAM.Support.Read_Index := "DI OUT P01".CAM_DISC.CAM.Support.Output_Index := 0; "DI OUT P01".G120C.DRV.Support.Cmd_MoveJogWP := "DI OUT P01".G120.DRV.Support.Cmd_MoveAbso := FALSE; "HMI KEY".P01.S120_M.F21_Halt := "HMI KEY".P01.S120_S.F21_Halt := "HMI KEY".P01.G120.F21_Halt := "HMI KEY".P01.G120C.F21_Halt := TRUE; ELSE "HMI KEY".P01.S120_M.F21_Halt := "HMI KEY".P01.S120_S.F21_Halt := "HMI KEY".P01.G120.F21_Halt := "HMI KEY".P01.G120C.F21_Halt := #SSM.S.steplo; #SSM.S.stepd := "DI OUT P01".G120.DRV.Support.LampOFF AND "DI OUT P01".G120C.DRV.Support.LampOFF AND "DI OUT P01".S120_M.DRV.Support.LampOFF AND "DI OUT P01".S120_S.DRV.Support.LampOFF AND NOT #SSM.S.steplo; END_IF;
2: // Query S120_M Deformable Rubber Winding Hub HomDone #SSM.S.c1.start := "HMI KEY".P01.S120_M.F5_Set_Ref_Point := NOT "DI OUT P01".S120_M.DRV.Support.HomeDone; #SSM.S.c1.set := 25; #SSM.S.stepd := "DI OUT P01".S120_M.DRV.Support.HomeDone AND #SSM.S.c1.done OR "DI OUT P01".S120_M.DRV.Support.HomeDone AND NOT (#SSM.S.steplo OR #SSM.S.c1.done); IF #SSM.S.stepd THEN IF "DI OUT P01".S120_S.DRV.Support.ActPos = 100.0 THEN #SSM.S.stepnew := 5; END_IF; END_IF;
3: // S120_S Rubber Steering Device MoveJog towards 0.0 position IF "DI OUT P01".S120_S.DRV.Support.ActPos <= 7.0 THEN "DI OUT P01".S120_S.DRV.Support.SetVelo := 1.0; #SSM.S.c1.start := TRUE; #SSM.S.c1.set := 25; "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogHP := FALSE; "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogWP := "HMI KEY".P01.S120_S.F12_Enable_WP AND #SSM.S.stepa AND #SSM.S.c1.done; IF "DI OUT P01".S120_S.DRV.Support.ActPos >= 0.0 THEN "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogHP := "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogWP := FALSE; #SSM.S.stepd := "DI OUT P01".S120_S.DRV.Support.LampOFF; END_IF; ELSIF "DI OUT P01".S120_S.DRV.Support.ActPos > 7.0 THEN "DI OUT P01".S120_S.DRV.Support.SetVelo := "HMI KEY".SetValues.Homing_Velocity; "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogWP := FALSE; "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogHP := "HMI KEY".P01.S120_S.F11_Enable_HP AND #SSM.S.stepa AND NOT #SSM.S.steplo; END_IF;
4: // S120_S Rubber Steering Device MoveJog towards WindowRange IF "DI OUT P01".S120_S.DRV.Support.ActPos <= "DI OUT P01".S120_S.DRV.Support.WindowRange THEN "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogHP := "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogWP := FALSE; #SSM.S.stepd := "DI OUT P01".S120_S.DRV.Support.LampOFF AND "E00 S120_S StartPos"; ELSIF "DI OUT P01".S120_S.DRV.Support.ActPos > "DI OUT P01".S120_S.DRV.Support.WindowRange THEN "DI OUT P01".S120_S.DRV.Support.SetVelo := 0.5; "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogWP := FALSE; "DI OUT P01".S120_S.DRV.Support.Cmd_MoveJogHP := "HMI KEY".P01.S120_S.F12_Enable_WP AND NOT #SSM.S.steplo; END_IF;
5: // Query S120_S Rubber Steering Device HomDone #SSM.S.c1.start := "HMI KEY".P01.S120_S.F5_Set_Ref_Point := NOT "DI OUT P01".S120_S.DRV.Support.HomeDone; #SSM.S.c1.set := 25; #SSM.S.stepd := "DI OUT P01".S120_S.DRV.Support.HomeDone AND (#SSM.S.c1.done OR NOT (#SSM.S.steplo OR #SSM.S.c1.done));
6: // S120_S Rubber Steering Device MoveAbsolute towards HomPos "DI OUT P01".S120_S.DRV.MC_MoveAbsolute.Position := 0.0; #SSM.S.stepd := "DI OUT P01".S120_S.DRV.Support.InPos AND NOT #SSM.S.steplo; "DI OUT P01".S120_S.DRV.Support.Cmd_MoveAbso := "DI OUT P01".S120_S.DRV.Support.Epos_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;
7: // Y100 Rubber Cutting Device HP "DI OUT P01".Y100.VLV_O.CmdExe_WP := FALSE; #SSM.S.stepd := "DI OUT P01".Y100.FB_HP AND NOT #SSM.S.steplo;
8: // Drive velocity pre-setting 0.0 IF #SSM.S.stepfc THEN "DI OUT P01".G120.DRV.Support.SetVelo := "DI OUT P01".G120C.DRV.Support.SetVelo := "DI OUT P01".S120_M.DRV.Support.SetVelo := "DI OUT P01".S120_S.DRV.Support.SetVelo := 0.0; "DI MAIN P01".SEQ1.Lap_No := "DI OUT P01".CAM_DISC.CAM.Support.Get_Cam_No := 0; ELSE "HMI KEY".P01.CAM_DISC.F16_Actor_On_WP := "HMI KEY".P01.CAM_DISC.F15_Actor_On_HP := FALSE; #SSM.S.stepd := #SSM.S.steplo; END_IF;
9: // Query P01 home position "DI MAIN P01".M00.HomPosRun := NOT "DI MAIN P01".M00.HomPosIS OR #SSM.S.steplo; END_CASE; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
