FB SAFE GLB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

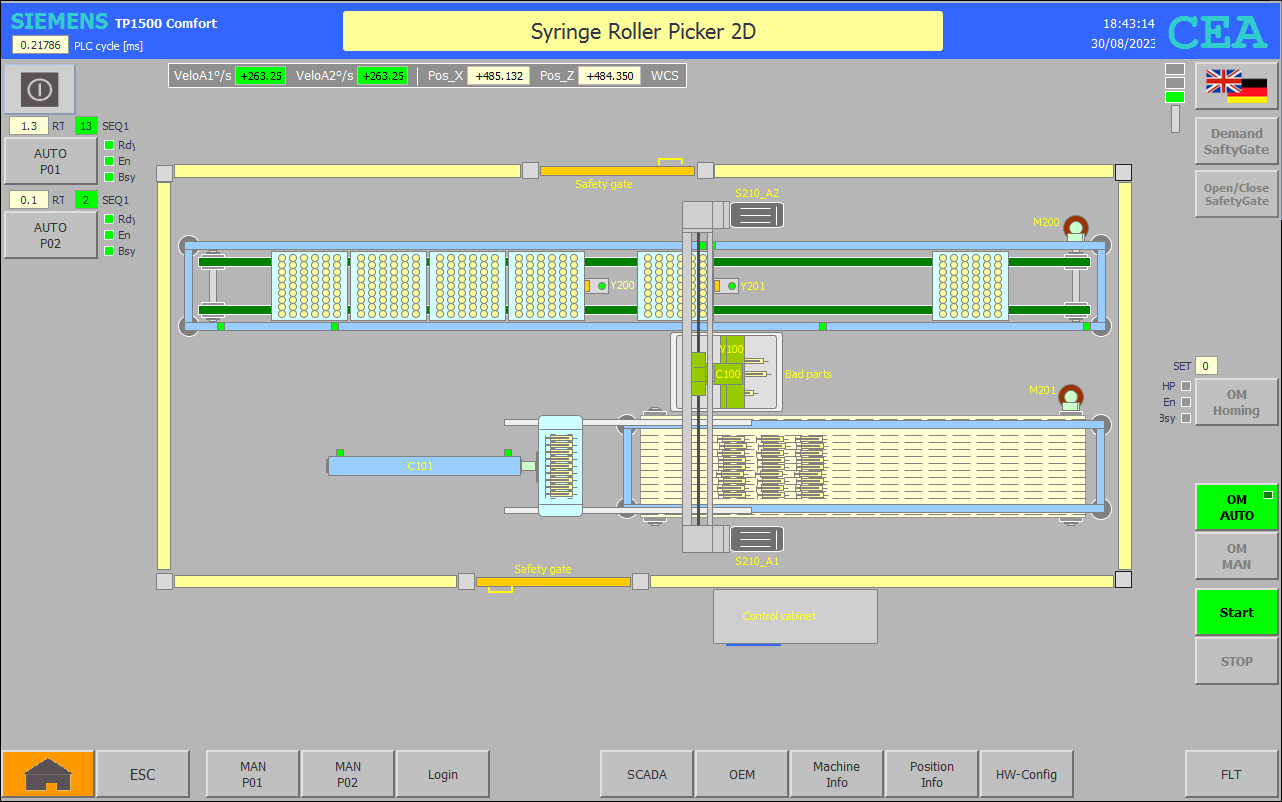

OB1 Main : Main Program Sweep (Cycle) |
|
|
|
|
|
Netzwerk 1: Start measuring runtime (=Last Cycle) "HMI SYS".Support.LastCycle := RUNTIME("HMI SYS".Support.LastCycle_inout); |
|
|
|
|
|
Netzwerk 2: Pulse generator "HMI SYS".Support.Sav_Clock_Byte := "HMI SYS".Support.Sav_Clock_Byte XOR "M00_Clock_Byte"; "M00_Impulse_Byte" := "HMI SYS".Support.Sav_Clock_Byte AND "M00_Clock_Byte"; "HMI SYS".Support.Sav_Clock_Byte := "M00_Clock_Byte"; |
|
|
|
|
|
Netzwerk 3: CALL distributor "DI MAIN GLB"(); // Global operation mode "DI MAIN P01"(); // Main programme management P01 "DI MAIN P02"(); // Main programme management P02 //----- |
|
|
|
|
|
Netzwerk 4: Create delayed first cycle flag "HMI SYS".Support.FirstCycle_TON(IN := TRUE, PT := t#2s); "M00 OB1 FirstCycle" := "HMI SYS".Support.FirstCycle_TON.Q; |
|
|
|
|
|
Netzwerk 5: End measuring runtime (=Last Cycle) "HMI SYS".Support.LastCycle_real := LREAL_TO_REAL(IN := RUNTIME("HMI SYS".Support.LastCycle_inout)); |
|
