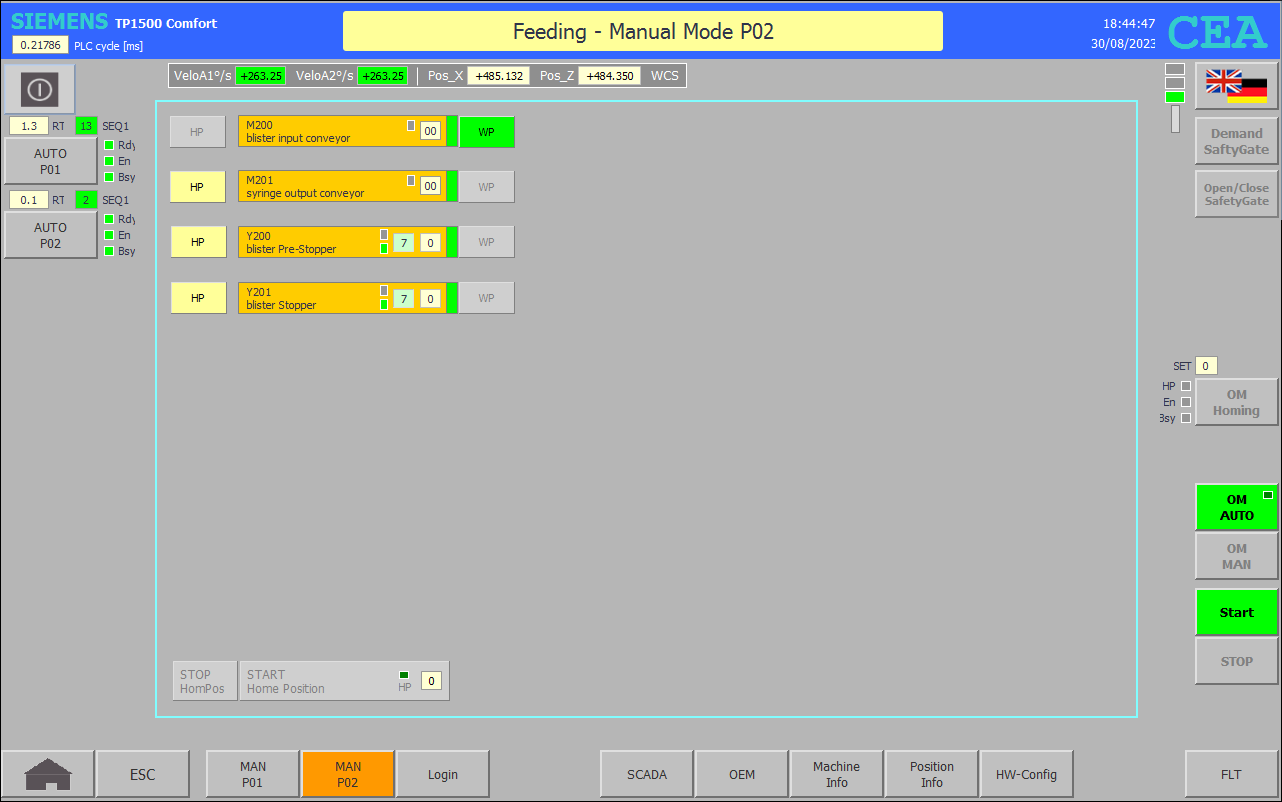

FB48 MAN P02 : P02 Manual mode feeding |
|
|
|
|
|
Netzwerk 1: M200 blister input conveyor - enable "HMI KEY".P02.M200.F12_Enable_WP := NOT "DI OUT P02".M200.Com_FLT; // Manual off switching IF NOT "HMI KEY".P02.M200.F12_Enable_WP OR "HMI KEY".P02.M200.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN "DI OUT P02".M200.DRV.CmdExe_WP := FALSE; END_IF; |
|
|
|
|
|
Netzwerk 2: M201 syringe output conveyor - enable "HMI KEY".P02.M201.F12_Enable_WP := NOT "DI OUT P02".M201.Com_FLT; // Manual off switching IF NOT "HMI KEY".P02.M201.F12_Enable_WP OR "HMI KEY".P02.M201.F1_HP OR "DI MAIN GLB".M00.CmpltMaOFF_Imp THEN "DI OUT P02".M201.DRV.CmdExe_WP := FALSE; END_IF; |
|
|
|
|
|
Netzwerk 3: Y200 blister Pre-Stopper - enable "HMI KEY".P02.Y200.F12_Enable_WP := NOT "DI OUT P02".Y200.Com_FLT AND "E00 AirPressure OK"; |
|
|
|
|
|
Netzwerk 4: Y201 blister Stopper - enable "HMI KEY".P02.Y201.F12_Enable_WP := NOT "DI OUT P02".Y201.Com_FLT AND "E00 AirPressure OK"; |
|
|
|
|
|
Netzwerk 5: Monitoring pneumatics manual operation *** IF NOT #ST_MANU THEN RETURN; ELSIF #MODULE_HP AND NOT #Support.HomPos_REg THEN "DI MAIN P02".M00.Init := TRUE; END_IF; #Support.HomPos_REg := #MODULE_HP; "DI MAIN P02".M00.TOF_ModuleOFF_Pulse(IN := NOT #SUPPORT_SEQ AND #Support.HomPos_FEg, PT := t#500ms); #Support.HomPos_FEg := #SUPPORT_SEQ; IF #SUPPORT_SEQ THEN RETURN; END_IF; |
|
|
|
|
|
Netzwerk 6: M200 blister input conveyor - execute IF "HMI KEY".P02.M200.F2_WP THEN "DI OUT P02".M200.DRV.CmdExe_WP := "HMI KEY".P02.M200.F12_Enable_WP; END_IF; |
|
|
|
|
|
Netzwerk 7: M201 syringe output conveyor - execute IF "HMI KEY".P02.M201.F2_WP THEN "DI OUT P02".M201.DRV.CmdExe_WP := "HMI KEY".P02.M201.F12_Enable_WP; END_IF; |
|
|
|
|
|
Netzwerk 8: Y200 blister Pre-Stopper - execute "DI OUT P02".Y201.VLV_O.ActorJog_WP := "HMI KEY".P02.Y201.F12_Enable_WP AND NOT "HMI KEY".P02.Y201.F1_HP AND ("HMI KEY".P02.Y201.F2_WP OR "DI OUT P02".Y201.FB_WP); |
|
|
|
|
|
Netzwerk 9: Y201 blister Stopper - execute "DI OUT P02".Y201.VLV_O.ActorJog_WP := "HMI KEY".P02.Y201.F12_Enable_WP AND NOT "HMI KEY".P02.Y201.F1_HP AND ("HMI KEY".P02.Y201.F2_WP OR "DI OUT P02".Y201.FB_WP); |
|
