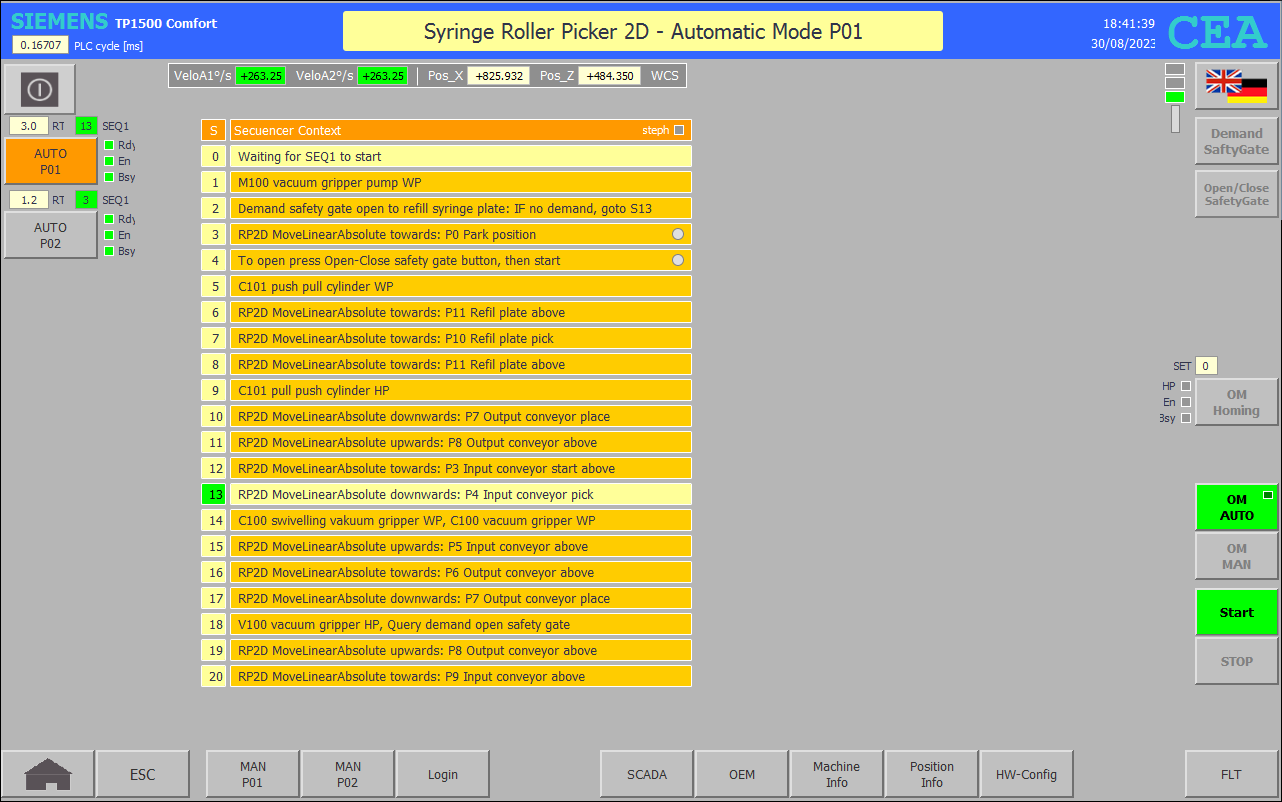

FB32 SEQ1 P01 :  SEQ1 Syringe pick & place

Netzwerk 1: Pre-Setting

IF "HMI KEY".P01.GLB.F9_Open_SafetyDoor AND "DI OUT P01".C101.FB_HP AND "DI MAIN GLB".M00.AutoCmpltMa_run AND NOT #OpenSftyGate_REg THEN

    #OpenSftyGate := NOT #OpenSftyGate;

END_IF;

#OpenSftyGate_REg := "HMI KEY".P01.GLB.F9_Open_SafetyDoor;

"DI MAIN P01".M00.RdyToStart := NOT "DI MAIN P01".M00.HomPosRun AND "DI MAIN GLB".M00.HomPosSR AND "DI MAIN GLB".M00.AutoCmpltMa_run;

IF NOT "DI MAIN P01".M00.RdyToStart THEN

    #OpenSftyGate := FALSE;

END_IF;

Netzwerk 2: Define last step

#SSM(LAST_STEP := 20);

Netzwerk 3: Step Switching Mechanism (SSM)

CASE #SSM.S.stepact OF

    0: // Waiting for SEQ1 to start

        "DI MAIN P01".to_P02_Feeding.Request := "DI MAIN P01".M00.SEQ1_Busy := FALSE;

        #SSM.S.stepd := #SSM.S.steps;

    1: // M100 vacuum gripper pump WP

        "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.BufferMode := 2;

        "DI OUT P01".M100.DRV.CmdExe_WP := "HMI KEY".P01.M100.F12_Enable_WP;

        #SSM.S.stepd := "E00 M100 FdB";

    2: // Demand to refill syringe plate: IF no demand, go to S11

        IF NOT #OpenSftyGate THEN

            #SSM.S.stepnew := 12;

            #SSM.S.stepd := TRUE;

        ELSE

            #SSM.S.stepd := TRUE;

        END_IF;

    3: // RP2D MoveLinearAbsolute: P0 Park position

        IF #SSM.S.stepfc THEN

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Velocity := "HMI KEY".TargetValues.RP2D.MoveWork;

            "HMI KEY".TargetValues.Position := 0;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND NOT #SSM.S.steplo AND #OpenSftyGate;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;

    4: // Open safety gate

        IF #SSM.S.stepfc THEN

            "DI MAIN GLB".M00.AutoCmpltMa_run := FALSE;

        ELSIF NOT "HMI KEY".P01.GLB.F10_Open_SafetyDoor_HMI AND "E01 OpnSftyGate CH1" AND "E01 OpnSftyGate CH2"

            AND NOT "Main_Safety_RTG1_DB".FB_SAFE_GLB.E00_SFDOOR_P01_Q THEN

            #SSM.S.stepd := "HMI KEY".P01.GLB.F10_Open_SafetyDoor_HMI :=

            NOT ("Main_Safety_RTG1_DB".FB_SAFE_GLB.E00_SFDOOR_P01.IN1 OR "Main_Safety_RTG1_DB".FB_SAFE_GLB.E00_SFDOOR_P01.IN2);

        ELSIF "HMI KEY".P01.GLB.F10_Open_SafetyDoor_HMI AND "Main_Safety_RTG1_DB".FB_SAFE_GLB.E00_SFDOOR_P01_Q THEN

            #SSM.S.stepd := TRUE;

        END_IF;

    5: // C101 push pull cylinder WP

        "HMI KEY".P01.GLB.F10_Open_SafetyDoor_HMI :=

        "DI OUT P01".C101.VLV_OC.CmdExe_HP := FALSE;

        "DI OUT P01".C101.VLV_OC.CmdExe_WP := "HMI KEY".P01.C101.F12_Enable_WP;

        #SSM.S.stepd := "DI OUT P01".C101.FB_WP;

    6: // RP2D MoveLinearAbsolute towards: P11 Refill plate above

        IF #SSM.S.stepfc THEN

            "HMI KEY".TargetValues.Position := 11;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;

    7: // RP2D MoveLinearAbsolute downwards: P10 Refill plate pick

        IF #SSM.S.stepfc THEN

            "HMI KEY".TargetValues.Position := 10;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND "DI OUT P01".V100.FB_WP AND "DI OUT P01".C100.FB_HP AND "E01 V100 SyringeOn";

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

            "DI OUT P01".V100.VLV_O.CmdExe_WP := "HMI KEY".P01.V100.F12_Enable_WP AND "DI OUT P01".RP2D.DRV.Support.InPos;

        END_IF;

    8: // RP2D MoveLinearAbsolute upwards: P11 Refill plate above

        IF #SSM.S.stepfc THEN

            "HMI KEY".TargetValues.Position := 11;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;

    9: // C101 pull push cylinder HP

        "DI OUT P01".C101.VLV_OC.CmdExe_WP := FALSE;

        "DI OUT P01".C101.VLV_OC.CmdExe_HP := "HMI KEY".P01.C101.F11_Enable_HP;

        #SSM.S.stepd := "DI OUT P01".C101.FB_HP;

    10: // RP2D MoveLinearAbsolute downwards: P7 Output conveyor place

        IF #SSM.S.stepfc THEN

            "HMI KEY".TargetValues.Position := 7;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND "DI OUT P01".V100.FB_HP AND NOT "E01 V100 SyringeOn";

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

            "DI OUT P01".V100.VLV_O.CmdExe_WP := NOT "DI OUT P01".RP2D.DRV.Support.InPos;

        END_IF;

    11: // RP2D MoveLinearAbsolute upwards: P8 Output conveyor above

        IF #SSM.S.stepfc THEN

            "HMI KEY".TargetValues.Position := 8;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND NOT #SSM.S.steplo;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;

    12: // RP2D MoveLinearAbsolute towards: P3 Input conveyor start above

        IF #SSM.S.stepfc THEN

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Velocity := "HMI KEY".TargetValues.RP2D.MoveWork;

            "HMI KEY".TargetValues.Position := 3;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

            "DI MAIN P01".to_P02_Feeding.Request := TRUE; // mc240823

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND NOT #SSM.S.steplo AND "DI MAIN P02".to_P01_Handling.Request;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;

    13: // RP2D MoveLinearAbsolute downwards: P4 Input conveyor pick

        IF #SSM.S.stepfc THEN

            "HMI KEY".TargetValues.Position := 4;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

            "DI MAIN P01".to_P02_Feeding.Request := "DI MAIN P01".M00.SEQ1_Busy := TRUE;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND "DI MAIN P02".to_P01_Handling.EnabledToMove AND NOT #SSM.S.steplo;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;

    14: // C100 swivelling vakuum gripper WP, C100 vacuum gripper (RP2D) WP

        "DI OUT P01".C100.VLV_OC.CmdExe_HP := FALSE;

        "DI OUT P01".C100.VLV_OC.CmdExe_WP := "HMI KEY".P01.C100.F12_Enable_WP;

        "DI OUT P01".V100.VLV_O.CmdExe_HP := FALSE;

        "DI OUT P01".V100.VLV_O.CmdExe_WP := "HMI KEY".P01.V100.F12_Enable_WP AND "DI OUT P01".C100.FB_WP;

        #SSM.S.c1.start := "DI OUT P01".V100.FB_WP AND "E01 V100 SyringeOn" AND "DI MAIN P02".to_P01_Handling.Request;

        #SSM.S.c1.set := 15;

        #SSM.S.stepd := #SSM.S.c1.done;

    15: // RP2D MoveLinearAbsolute slow upwards: P5 Input conveyor above

        IF #SSM.S.stepfc THEN

            "HMI KEY".TargetValues.Position := 5;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Velocity := "HMI KEY".TargetValues.RP2D.MoveSlow;

            #SSM.S.c1.set := 7;

        ELSE

            // C100 swivelling vakuum gripper HP

            "DI OUT P01".C100.VLV_OC.CmdExe_WP := FALSE;

            "DI OUT P01".C100.VLV_OC.CmdExe_HP := "HMI KEY".P01.C100.F11_Enable_HP;

            #SSM.S.c1.start := "DI MAIN P01".to_P02_Feeding.EnabledToMove := "DI OUT P01".RP2D.DRV.Support.InPos AND "DI OUT P01".C100.FB_HP;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.c1.done AND #SSM.S.stepa;

            IF #SSM.S.c1.done THEN

                #SSM.S.stepd := "DI MAIN P02".to_P01_Handling.Done;

            END_IF;

        END_IF;

    16: // RP2D MoveLinearAbsolute towards: P6 Output conveyor above

        IF #SSM.S.stepfc THEN

            #SSM.S.c1.start := TRUE;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Velocity := "HMI KEY".TargetValues.RP2D.MoveWork;

            "HMI KEY".TargetValues.Position := 6;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Active AND NOT #SSM.S.steplo;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.c1.done

            AND #SSM.S.stepa;

        END_IF;

    17: // RP2D MoveLinearAbsolute downwards: P7 Output conveyor place

        IF #SSM.S.stepfc THEN

            #SSM.S.c1.start := TRUE;

            "HMI KEY".TargetValues.Position := 7;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.TransParameter[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].TransParameter;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.Support.InPos AND NOT #SSM.S.stepllo;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND NOT #SSM.S.stepd AND #SSM.S.stepa;

        END_IF;

    18: // V100 vacuum gripper (RP2D) HP, Query demand open safety gate

        "DI OUT P01".V100.VLV_O.CmdExe_WP := FALSE;

        #SSM.S.stepd := "DI OUT P01".V100.FB_HP AND NOT "E01 V100 SyringeOn";

        IF #SSM.S.stepd AND #OpenSftyGate THEN

            #SSM.S.stepnew := 2;

            "DI MAIN P01".M00.SEQ1_Busy := FALSE;

        END_IF;

    19: // RP2D MoveLinearAbsolute upwards: P8 Output conveyor above

        IF #SSM.S.stepfc THEN

            "DI MAIN P01".to_P02_Feeding.Request := FALSE;

            #SSM.S.c1.start := "DI MAIN P01".to_P02_Feeding.Done := TRUE;

            "HMI KEY".TargetValues.Position := 8;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

        ELSE

            #SSM.S.stepd := "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Active AND NOT #SSM.S.steplo;

            "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND #SSM.S.c1.done AND NOT #SSM.S.stepd

            AND #SSM.S.stepa;

        END_IF;

    20: // RP2D MoveLinearAbsolute towards: P9 Input conveyor above

        IF #SSM.S.stepfc THEN

            #SSM.S.c1.start := TRUE;

            "HMI KEY".TargetValues.Position := 9;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.TransParameter[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].TransParameter;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[1] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].x;

            "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Position[3] := "HMI KEY".TargetValues.RP2D_P["HMI KEY".TargetValues.Position].z;

            "DI MAIN P01".M00.SEQ1_Busy := FALSE;

        ELSIF "DI OUT P01".RP2D.DRV.MC_MoveLinearAbsolute.Active AND NOT #SSM.S.steplo THEN

            "DI MAIN P01".M00.ProductCounter.GoodParts := "DI MAIN P01".M00.ProductCounter.GoodParts + 1; // number of pick & place

            #SSM.S.stepd := TRUE;

            #SSM.S.stepnew := 13;

            #RunTimeCountr := 0;

        END_IF;

        "DI OUT P01".RP2D.DRV.Support.Cmd_MoveLinearAbsolute := "DI OUT P01".RP2D.DRV.Support.Kinematics_Enabled AND #SSM.S.c1.done AND NOT #SSM.S.stepd

        AND #SSM.S.stepa;

END_CASE;
