FB32 SEQ1 P01 : Programme choice control |
|
|
|
|
|
Network 1: Progamme Choice IF "DI MAIN GLB".M00.ManuCmpltMa_run THEN // Reset programme choice "HMI KEY".Message.Current_Programme_No := 0; // Load programme choice 1 IF "HMI KEY".Execute.Select_Programme_1A THEN "HMI KEY".SetPointComp_A[0] := "HMI KEY".SetPointComp_A[1]; "HMI KEY".Execute.Programme_1A_Selected := TRUE; ELSIF "HMI KEY".SetPointComp_A[0] <> "HMI KEY".SetPointComp_A[1] THEN "HMI KEY".Execute.Programme_1A_Selected := FALSE; END_IF; IF "HMI KEY".Execute.Select_Programme_1B THEN "HMI KEY".SetPointComp_B[0] := "HMI KEY".SetPointComp_B[1]; "HMI KEY".Execute.Programme_1B_Selected := TRUE; ELSIF "HMI KEY".SetPointComp_B[0] <> "HMI KEY".SetPointComp_B[1] THEN "HMI KEY".Execute.Programme_1B_Selected := FALSE; END_IF; "HMI KEY".Message.Programme_1_Selected := "HMI KEY".Execute.Programme_1A_Selected AND "HMI KEY".Execute.Programme_1B_Selected; IF "HMI KEY".Message.Programme_1_Selected THEN "HMI KEY".Message.Current_Programme_No := 1; END_IF; // Load programme choice 2 IF "HMI KEY".Execute.Select_Programme_2A THEN "HMI KEY".SetPointComp_A[0] := "HMI KEY".SetPointComp_A[2]; "HMI KEY".Execute.Programme_2A_Selected := TRUE; ELSIF "HMI KEY".SetPointComp_A[0] <> "HMI KEY".SetPointComp_A[2] THEN "HMI KEY".Execute.Programme_2A_Selected := FALSE; END_IF; IF "HMI KEY".Execute.Select_Programme_2B THEN "HMI KEY".SetPointComp_B[0] := "HMI KEY".SetPointComp_B[2]; "HMI KEY".Execute.Programme_2B_Selected := TRUE; ELSIF "HMI KEY".SetPointComp_B[0] <> "HMI KEY".SetPointComp_B[2] THEN "HMI KEY".Execute.Programme_2B_Selected := FALSE; END_IF; "HMI KEY".Message.Programme_2_Selected := "HMI KEY".Execute.Programme_2A_Selected AND "HMI KEY".Execute.Programme_2B_Selected; IF "HMI KEY".Message.Programme_2_Selected THEN "HMI KEY".Message.Current_Programme_No := 2; END_IF; // Load programme choice 3 IF "HMI KEY".Execute.Select_Programme_3A THEN "HMI KEY".SetPointComp_A[0] := "HMI KEY".SetPointComp_A[3]; "HMI KEY".Execute.Programme_3A_Selected := TRUE; ELSIF "HMI KEY".SetPointComp_A[0] <> "HMI KEY".SetPointComp_A[3] THEN "HMI KEY".Execute.Programme_3A_Selected := FALSE; END_IF; IF "HMI KEY".Execute.Select_Programme_3B THEN "HMI KEY".SetPointComp_B[0] := "HMI KEY".SetPointComp_B[3]; "HMI KEY".Execute.Programme_3B_Selected := TRUE; ELSIF "HMI KEY".SetPointComp_B[0] <> "HMI KEY".SetPointComp_B[3] THEN "HMI KEY".Execute.Programme_3B_Selected := FALSE; END_IF; "HMI KEY".Message.Programme_3_Selected := "HMI KEY".Execute.Programme_3A_Selected AND "HMI KEY".Execute.Programme_3B_Selected; IF "HMI KEY".Message.Programme_3_Selected THEN "HMI KEY".Message.Current_Programme_No := 3; END_IF; END_IF; |
|
|
|
|
|
Network 2: Show message on HMI "HMI KEY".Message.Required_Pressuree_Reached_Comp_A := ABS("DI OUT P01".P24C_A.Setpoint - "DI OUT P01".P24C_A.Input) < "HMI KEY".Execute.Pressure_Tolerance_Comp_A; "HMI KEY".Message.Required_Pressuree_Reached_Comp_B := ABS("DI OUT P01".P24C_B.Setpoint - "DI OUT P01".P24C_B.Input) < "HMI KEY".Execute.Pressure_Tolerance_Comp_B; IF "DI MAIN P01".M00.SEQ1_Busy THEN "HMI KEY".Message.Current_Metering_Volume_A := "HMI KEY".SetPointComp_A[0].Size * "HMI KEY".SetPointComp_A[0].Size * 0.785 * ("DI OUT P01".V90_A.DRV.Support.ActPos - "HMI KEY".SetPointComp_A[0].Position); "HMI KEY".Message.Current_Metering_Volume_B := "HMI KEY".SetPointComp_B[0].Size * "HMI KEY".SetPointComp_B[0].Size * 0.785 * ("DI OUT P01".V90_B.DRV.Support.ActPos - "HMI KEY".SetPointComp_B[0].Position); END_IF; |
|
|
|
|
|
Network 3: Pre-Setting "DI MAIN P01".M00.ProductCounter.DlyOnReset(IN := "DI MAIN P01".M00.ProductCounter.ResetGoodProducts, PT := "DI MAIN P01".M00.ProductCounter.DlyOnReset.PT); IF "DI MAIN P01".M00.ProductCounter.DlyOnReset.Q THEN "DI MAIN P01".M00.ProductCounter.GoodProducts := "DI MAIN P01".M00.ProductCounter.SetCounter; ELSIF "DI OUT P02".Support.CommisionCancel_TON.Q THEN "HMI KEY".Execute.Programme_1A_Selected := "HMI KEY".Execute.Programme_1B_Selected := "HMI KEY".Execute.Programme_2A_Selected := "HMI KEY".Execute.Programme_2B_Selected := "HMI KEY".Execute.Programme_3A_Selected := "HMI KEY".Execute.Programme_3B_Selected := FALSE; END_IF; #Support.Enabled := NOT ("DI MAIN P01".M00.HomPosRun OR "DI MAIN P02".M00.HomPosRun); "DI MAIN P01".M00.RdyToStart := #Support.Enabled AND "HMI KEY".Message.Current_Programme_No > 0 AND "DI MAIN P02".M00.ProductCounter.GoodProducts < "HMI KEY".Execute.Number_of_Pallets_ToGo; |
|
|
|
|
|
Network 4: Define SSM last step #SSM(LAST_STEP := 9); IF "HMI KEY".P01.GLB.F19_GoToStep THEN #SSM.S.stepact := "HMI KEY".P01.GLB.GoToStep; RETURN; END_IF; |
|
|
|
|
|

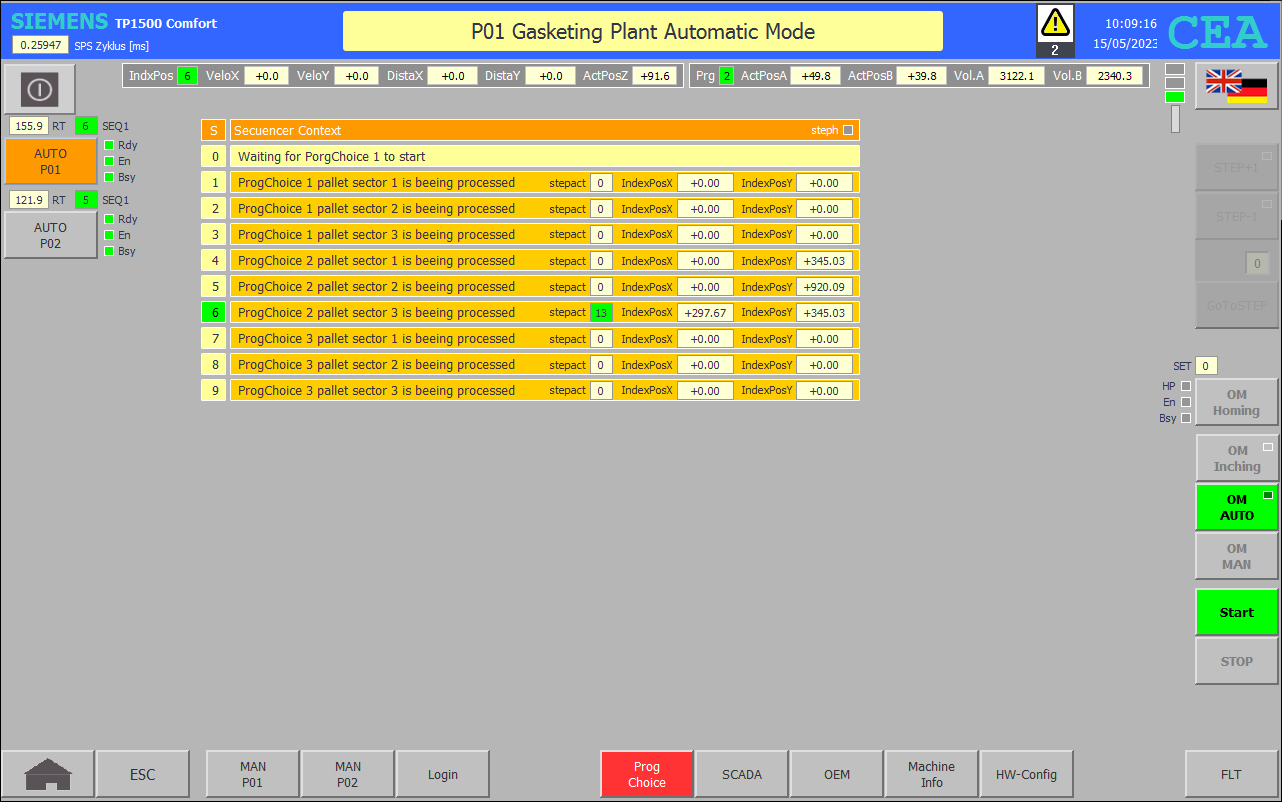

CASE #SSM.S.stepact OF 0: // Waiting for sequencer to start "DI MAIN P01".M00.SEQ1_Busy := FALSE; IF NOT "DI MAIN P01".M00.RdyToStart THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; RETURN; ELSIF "DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run THEN IF "HMI KEY".Message.Programme_1_Selected THEN // Work pallet sector 1 #SSM.S.stepd := #SSM.S.steps; ELSIF "HMI KEY".Message.Programme_2_Selected THEN // Work pallet sector 2 #SSM.S.stepnew := 4; #SSM.S.stepd := #SSM.S.steps; ELSIF "HMI KEY".Message.Programme_3_Selected THEN // Work pallet sector 3 #SSM.S.stepnew := 7; #SSM.S.stepd := #SSM.S.steps; END_IF; END_IF;
1: // ProgChoice 1 pallet sector 1 selected IF "HMI KEY".Message.Current_Programme_No <> 1 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; ELSE "DI MAIN P01".M00.SEQ1_Busy := NOT (#SEQ341.SSM.S.step0 OR #SEQ331.SSM.S.step0); END_IF; IF #SEQ_12 THEN #SEQ331.SSM.S.steps := #Support.Enabled AND NOT #SEQ331.Done; // Programme choice 1/2 #SEQ331.SSM.S.steph := #Support.steph; #SEQ331.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ331(); IF #SEQ331.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ331.Done := FALSE; END_IF; ELSE #SEQ341.SSM.S.steps := #Support.Enabled AND NOT #SEQ341.Done; // Programme choice 2/2 #SEQ341.SSM.S.steph := #Support.steph; #SEQ341.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ341(); IF #SEQ341.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ341.Done := FALSE; END_IF; END_IF;
2: // ProgChoice 1 pallet sector 2 selected IF "HMI KEY".Message.Current_Programme_No <> 1 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; END_IF; IF #SEQ_12 THEN #SEQ332.SSM.S.steps := #Support.Enabled AND NOT #SEQ332.Done; #SEQ332.SSM.S.steph := #Support.steph; #SEQ332.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ332(); IF #SEQ332.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ332.Done := FALSE; END_IF; ELSE #SEQ342.SSM.S.steps := #Support.Enabled AND NOT #SEQ342.Done; #SEQ342.SSM.S.steph := #Support.steph; #SEQ342.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ342(); IF #SEQ342.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ342.Done := FALSE; END_IF; END_IF;
3: // ProgChoice 1 pallet sector 3 selected IF "HMI KEY".Message.Current_Programme_No <> 1 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; END_IF; IF #SEQ_12 THEN #SEQ333.SSM.S.steps := #Support.Enabled AND NOT #SEQ333.Done; #SEQ333.SSM.S.steph := #Support.steph; #SEQ333.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ333(); IF #SEQ333.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ333.Done := FALSE; END_IF; ELSE #SEQ343.SSM.S.steps := #Support.Enabled AND NOT #SEQ343.Done; #SEQ343.SSM.S.steph := #Support.steph; #SEQ343.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ343(); IF "DI MAIN P02".to_P01_Pallet.DoneACK AND #SEQ343.SSM.S.step0 AND NOT #SSM.S.steplo THEN #SSM.S.stepnew := 0; "DI MAIN P01".to_P02_Pallet.DoneACK := #SSM.S.stepd := TRUE; #SEQ343.Done := FALSE; END_IF; END_IF;
4: // ProgChoice 2 pallet sector 1 selected IF "HMI KEY".Message.Current_Programme_No <> 2 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; ELSE "DI MAIN P01".M00.SEQ1_Busy := NOT #SEQ334.SSM.S.step0; END_IF; #SEQ334.SSM.S.steps := #Support.Enabled AND NOT #SEQ334.Done; #SEQ334.SSM.S.steph := #Support.steph; #SEQ334.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ334(); IF #SEQ334.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ334.Done := FALSE; END_IF;
5: // ProgChoice 2 pallet sector 2 selected IF "HMI KEY".Message.Current_Programme_No <> 2 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; END_IF; #SEQ335.SSM.S.steps := #Support.Enabled AND NOT #SEQ335.Done; #SEQ335.SSM.S.steph := #Support.steph; #SEQ335.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ335(); IF #SEQ335.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ335.Done := FALSE; END_IF;
6: // ProgChoice 2 pallet sector 3 selected IF "HMI KEY".Message.Current_Programme_No <> 2 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; END_IF; #SEQ336.SSM.S.steps := #Support.Enabled AND NOT #SEQ336.Done; #SEQ336.SSM.S.steph := #Support.steph; #SEQ336.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ336(); IF "DI MAIN P02".to_P01_Pallet.DoneACK AND #SEQ336.SSM.S.step0 AND NOT #SSM.S.steplo THEN #SSM.S.stepnew := 0; "DI MAIN P01".to_P02_Pallet.DoneACK := #SSM.S.stepd := TRUE; #SEQ336.Done := FALSE; END_IF;
7: // ProgChoice 3 pallet sector 1 selected IF "HMI KEY".Message.Current_Programme_No <> 3 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; ELSE "DI MAIN P01".M00.SEQ1_Busy := NOT #SEQ337.SSM.S.step0; END_IF; #SEQ337.SSM.S.steps := #Support.Enabled AND NOT #SEQ337.Done; #SEQ337.SSM.S.steph := #Support.steph; #SEQ337.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ337(); IF #SEQ337.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ337.Done := FALSE; END_IF;
8: // ProgChoice 3 pallet sector 2 selected IF "HMI KEY".Message.Current_Programme_No <> 3 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; END_IF; #SEQ338.SSM.S.steps := #Support.Enabled AND NOT #SEQ338.Done; #SEQ338.SSM.S.steph := #Support.steph; #SEQ338.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ338(); IF #SEQ338.SSM.S.step0 AND NOT #SSM.S.steplo AND #Support.Enabled THEN #SSM.S.stepd := TRUE; #SEQ338.Done := FALSE; END_IF;
9: // ProgChoice 3 pallet sector 3 selected IF "HMI KEY".Message.Current_Programme_No <> 3 THEN "DI MAIN GLB".M00.AutoCmpltMa_run := "DI MAIN GLB".M00.InchCmpltMa_run := FALSE; #SSM.S.stepnew := 0; #SSM.S.stepd := TRUE; END_IF; #SEQ339.SSM.S.steps := #Support.Enabled AND NOT #SEQ339.Done; #SEQ339.SSM.S.steph := #Support.steph; #SEQ339.SSM.S.stepa := #Support.Enabled AND ("DI MAIN GLB".M00.AutoCmpltMa_run OR "DI MAIN GLB".M00.InchCmpltMa_run); #SEQ339(); IF "DI MAIN P02".to_P01_Pallet.DoneACK AND #SEQ339.SSM.S.step0 AND NOT #SSM.S.steplo THEN "DI MAIN P01".to_P02_Pallet.DoneACK := #SSM.S.stepd := TRUE; #SEQ339.Done := FALSE; END_IF; END_CASE; |
|
