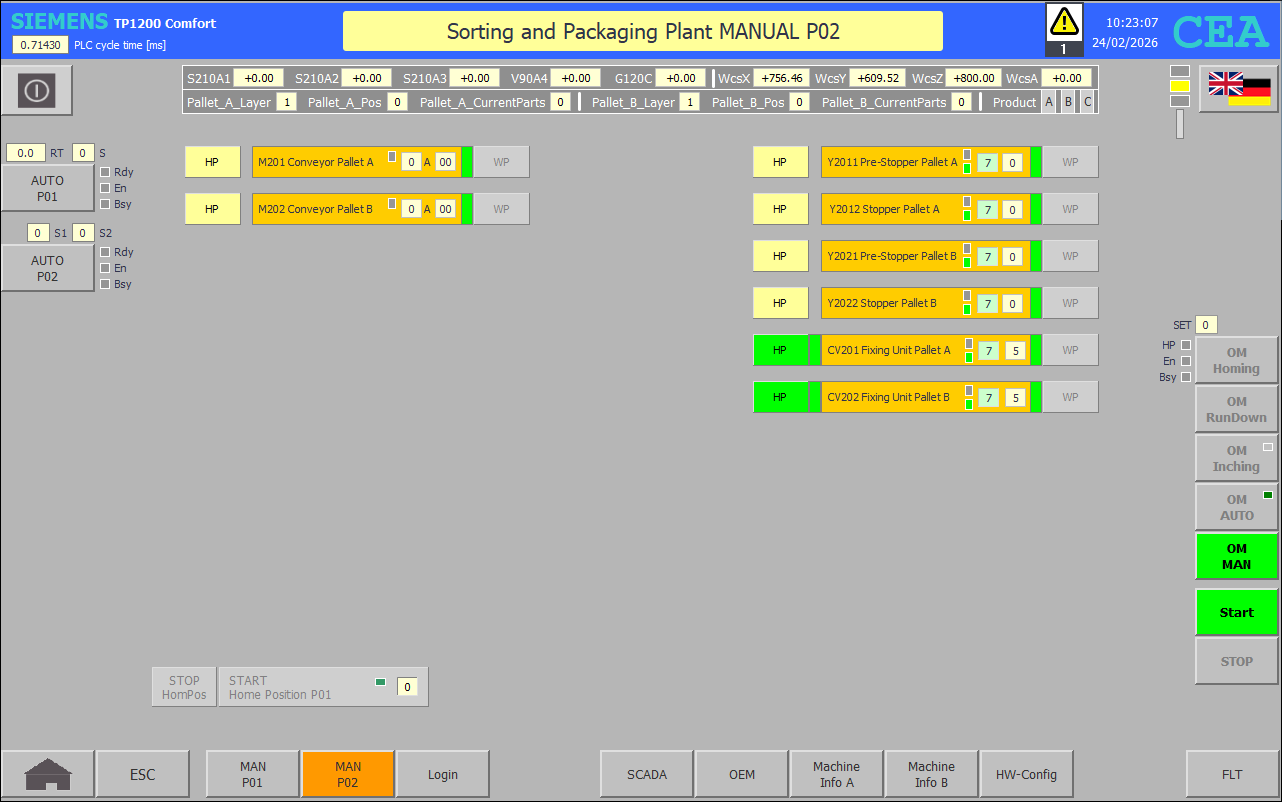

FB48 MAM P02 : Manual operation

Network 1: M201 Packaging Conveyor Pallet A - enable

"HMI KEY".P02.M201.F12_Enable_WP := NOT ("DI OUT P02".M201.HALT_01 OR "DI OUT P02".M201.Common_FLT);

// M201 off switching

IF NOT "HMI KEY".P02.M201.F12_Enable_WP OR "HMI KEY".P02.M201.F1_HP OR "DI MAIN GLB".M00.EntirePlant_STOP_Impulse THEN

    "DI OUT P02".M201.DRV.CmdExe_WP := FALSE;

END_IF;

Network 2: M202 Packaging Conveyor Pallet B - enable

"HMI KEY".P02.M202.F12_Enable_WP := NOT ("DI OUT P02".M202.HALT_01 OR "DI OUT P02".M202.Common_FLT);

// M202 off switching

IF NOT "HMI KEY".P02.M202.F12_Enable_WP OR "HMI KEY".P02.M202.F1_HP OR "DI MAIN GLB".M00.EntirePlant_STOP_Impulse THEN

    "DI OUT P02".M202.DRV.CmdExe_WP := FALSE;

END_IF;

Network 3: Y2011 Packaging Pre-Stopper Pallet A - enable

"HMI KEY".P02.Y2011.F12_Enable_WP := NOT "DI OUT P02".Y2011.Common_FLT AND "DI OUT P02".Y2011.RELEASE;

Network 4: Y2012 Packaging Stopper Pallet A - enable

"HMI KEY".P02.Y2012.F12_Enable_WP := NOT "DI OUT P02".Y2012.Common_FLT AND "DI OUT P02".Y2012.RELEASE;

Network 5: Y2021 Packaging Pre-Stopper Pallet B - enable

"HMI KEY".P02.Y2021.F12_Enable_WP := NOT "DI OUT P02".Y2021.Common_FLT AND "DI OUT P02".Y2021.RELEASE;

Network 6: Y2022 Packaging Stopper Pallet B - enable

"HMI KEY".P02.Y2022.F12_Enable_WP := NOT "DI OUT P02".Y2022.Common_FLT AND "DI OUT P02".Y2022.RELEASE;

Network 7: CV201 Packaging Fixing Unit Pallet A - enable

"HMI KEY".P02.CV201.F11_Enable_HP :=

"HMI KEY".P02.CV201.F12_Enable_WP := NOT "DI OUT P02".CV201.Common_FLT AND "DI OUT P02".CV201.RELEASE;

Network 8: CV202 Packaging Fixing Unit Pallet B - enable

"HMI KEY".P02.CV202.F11_Enable_HP :=

"HMI KEY".P02.CV202.F12_Enable_WP := NOT "DI OUT P02".CV202.Common_FLT AND "DI OUT P02".CV202.RELEASE;

Network 9: Monitoring manual operation ***

IF NOT #PLANT_MANU THEN

    RETURN;

ELSIF #MODULE_HP AND NOT #Support.HomePos_REg THEN

    "DI MAIN P02".M00.Initialization := TRUE;

END_IF;

#Support.HomePos_REg := #MODULE_HP;

"DI MAIN P02".M00.TOF_EntireModule_STOP_Pulse(IN := NOT #SUPPORT_SEQ AND #Support.HomePos_FEg,

                                              PT := t#500ms);

#Support.HomePos_FEg := #SUPPORT_SEQ;

IF #SUPPORT_SEQ THEN

    RETURN;

END_IF;

Network 10: M201 Packaging Conveyor Pallet A - execute

IF "HMI KEY".P02.M201.F2_WP THEN

    "DI OUT P02".M201.DRV.CmdExe_WP := "HMI KEY".P02.M201.F12_Enable_WP;

END_IF;

Network 11: M202 Packaging Conveyor Pallet B - execute

IF "HMI KEY".P02.M202.F2_WP THEN

    "DI OUT P02".M202.DRV.CmdExe_WP := "HMI KEY".P02.M202.F12_Enable_WP;

END_IF;

Network 12: Y2011 Packaging Pre-Stopper Pallet A - execute

"DI OUT P02".Y2011.VLV_O.CmdExe_WP :=

"HMI KEY".P02.Y2011.F12_Enable_WP AND NOT "HMI KEY".P02.Y2011.F1_HP AND ("HMI KEY".P02.Y2011.F2_WP OR "DI OUT P02".Y2011.FEEDBACK_WP);

Network 13: Y2012 Packaging Stopper Pallet A - execute

"DI OUT P02".Y2012.VLV_O.CmdExe_WP :=

"HMI KEY".P02.Y2012.F12_Enable_WP AND NOT "HMI KEY".P02.Y2012.F1_HP AND ("HMI KEY".P02.Y2012.F2_WP OR "DI OUT P02".Y2012.FEEDBACK_WP);

Network 14: Y2021 Packaging Pre-Stopper Pallet B - execute

"DI OUT P02".Y2021.VLV_O.CmdExe_WP :=

"HMI KEY".P02.Y2021.F12_Enable_WP AND NOT "HMI KEY".P02.Y2021.F1_HP AND ("HMI KEY".P02.Y2021.F2_WP OR "DI OUT P02".Y2021.FEEDBACK_WP);

Network 15: Y2022 Packaging Stopper Pallet B - execute

"DI OUT P02".Y2022.VLV_O.CmdExe_WP :=

"HMI KEY".P02.Y2022.F12_Enable_WP AND NOT "HMI KEY".P02.Y2022.F1_HP AND ("HMI KEY".P02.Y2022.F2_WP OR "DI OUT P02".Y2022.FEEDBACK_WP);

Network 16:  CV201 Packaging Fixing Unit Pallet A - execute

"DI OUT P02".CV201.VLV_OC.CmdExe_WP := "HMI KEY".P02.CV201.F12_Enable_WP

AND NOT "HMI KEY".P02.CV201.F1_HP AND ("HMI KEY".P02.CV201.F2_WP OR "DI OUT P02".CV201.FEEDBACK_WP);

"DI OUT P02".CV201.VLV_OC.CmdExe_HP := "HMI KEY".P02.CV201.F11_Enable_HP

AND NOT "HMI KEY".P02.CV201.F2_WP AND ("HMI KEY".P02.CV201.F1_HP OR "DI OUT P02".CV201.FEEDBACK_HP);

Network 17:  CV202 Packaging Fixing Unit Pallet B - execute

"DI OUT P02".CV202.VLV_OC.CmdExe_WP := "HMI KEY".P02.CV202.F12_Enable_WP

AND NOT "HMI KEY".P02.CV202.F1_HP AND ("HMI KEY".P02.CV202.F2_WP OR "DI OUT P02".CV202.FEEDBACK_WP);

"DI OUT P02".CV202.VLV_OC.CmdExe_HP := "HMI KEY".P02.CV202.F11_Enable_HP

AND NOT "HMI KEY".P02.CV202.F2_WP AND ("HMI KEY".P02.CV202.F1_HP OR "DI OUT P02".CV202.FEEDBACK_HP);
