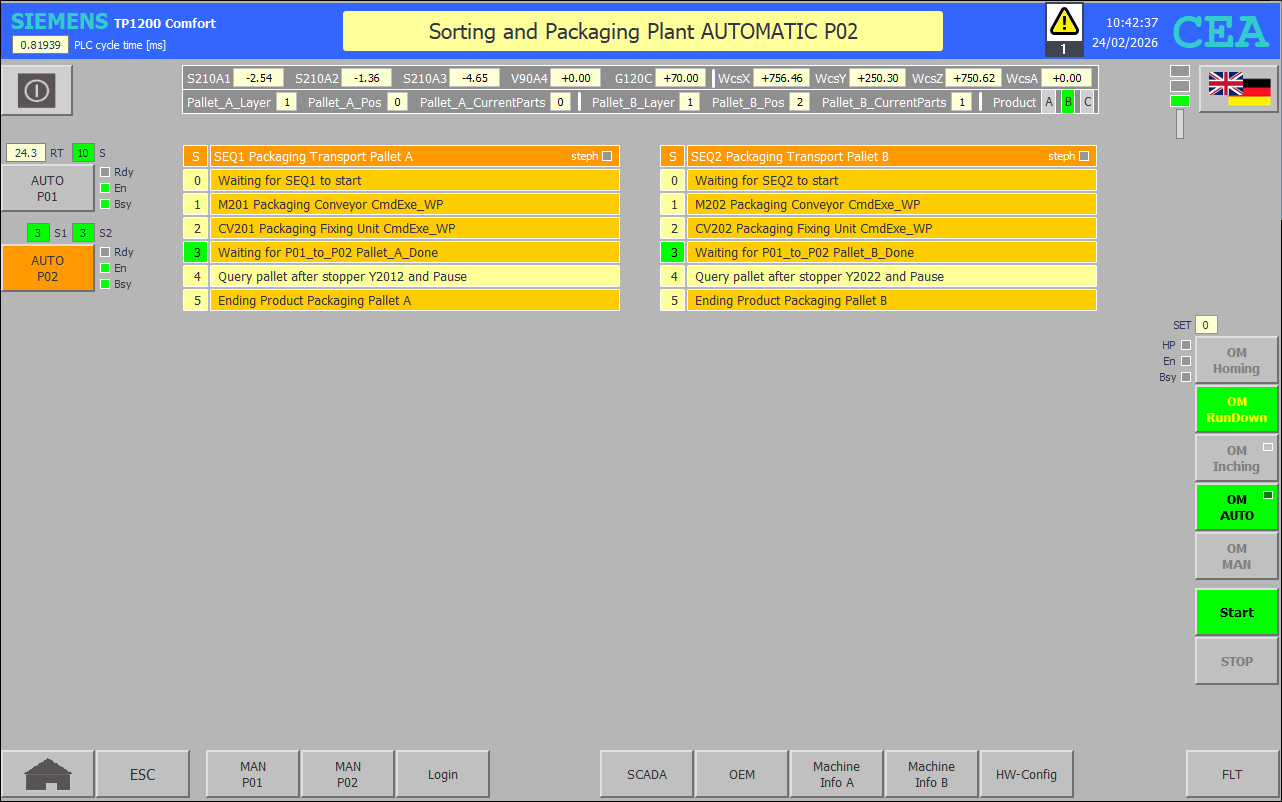

FB42 SEQ1 P02 : Packaging Pallet A

Network 1: Pre-Setting

"DI MAIN P02".M00.ReadyToStart := "DI MAIN P02".M00.HomePos_IS AND ("DI MAIN GLB".M00.AutoEntirePlant_run XOR "DI MAIN GLB".M00.InchEntirePlant_run);

"DI MAIN P02".M00.SEQ1_Busy := NOT (#SSM.S.step0 AND "DI MAIN P02".SEQ2.SSM.S.step0);

Network 2: Define last step

#SSM(LAST_STEP := 5);

Network 3: Step Switching Mechanism (SSM)

CASE #SSM.S.stepact OF

    0: // Waiting for SEQ1 to start

        #SSM.S.stepd := "DI MAIN P01".to_P02.Pallet_A_Request AND "DI MAIN P02".M00.ReadyToStart AND #SSM.S.steps;

    1: // M201 Packaging Conveyor CmdExe_WP

        "DI OUT P02".Y2011.VLV_O.CmdExe_WP := "HMI KEY".P02.Y2011.F12_Enable_WP AND #SSM.S.stepa;

        "DI OUT P02".M201.DRV.CmdExe_WP := "HMI KEY".P02.M201.F12_Enable_WP AND ("DI OUT P02".Y2011.FEEDBACK_WP OR "E00 Y2011 After Pos");

        #SSM.S.stepd := "DI OUT P02".M201.FEEDBACK AND "E00 Y2011 After Pos" AND "DI OUT P02".Y2011.FEEDBACK_HP;

    2: // CV201 Packaging Fixing Unit CmdExe_WP

        IF #SSM.S.stepfc THEN

            "DI OUT P01".Pallet_A := "HMI KEY".PlantInfo.Pallet_A; // BLOCK MOVE

            "DI OUT P01".Pallet_A.Places := "HMI KEY".PlantInfo.Pallet_A.Layer_Data.PlacesOn_X * "HMI KEY".PlantInfo.Pallet_A.Layer_Data.PlacesOn_Y;

        ELSIF "E00 Y2012 at Pos" THEN

            "DI OUT P02".M201.DRV.CmdExe_WP := "DI OUT P02".CV201.VLV_OC.CmdExe_HP := FALSE;

            "DI OUT P02".CV201.VLV_OC.CmdExe_WP := "HMI KEY".P02.CV201.F12_Enable_WP;

            #SSM.S.stepd := "DI MAIN P02".to_P01.Pallet_A_EnabledToRun := NOT ("DI OUT P02".M201.FEEDBACK OR #SSM.S.steplo) AND "DI OUT P02".CV201.FEEDBACK_WP;

        END_IF;

    3: // Waiting for P01_to_P02 Pallet_A_Done

        IF "DI MAIN P01".to_P02.Pallet_A_Done THEN

            "DI OUT P02".CV201.VLV_OC.CmdExe_WP := FALSE;

            "DI OUT P02".CV201.VLV_OC.CmdExe_HP := "HMI KEY".P02.CV201.F11_Enable_HP;

            "DI OUT P02".Y2012.VLV_O.CmdExe_WP := "HMI KEY".P02.Y2012.F12_Enable_WP AND #SSM.S.stepa;

            "DI OUT P02".M201.DRV.CmdExe_WP := "HMI KEY".P02.M201.F12_Enable_WP AND ("DI OUT P02".Y2012.FEEDBACK_WP OR "E00 Y2012 After Pos");

            #SSM.S.stepd := "DI OUT P02".M201.FEEDBACK AND "E00 Y2012 After Pos";

        END_IF;

    4: // Query pallet after stopper Y2012

        #SSM.S.c1.start := TRUE;

        #SSM.S.c1.set := 30;

        "DI OUT P02".Y2012.VLV_O.CmdExe_WP := "DI OUT P02".M201.DRV.CmdExe_WP := NOT #SSM.S.c1.done;

        #SSM.S.stepd := "DI MAIN P02".to_P01.Pallet_A_ReadyToEnd := "DI OUT P02".M201.DRV.LampHP AND "DI OUT P02".Y2012.FEEDBACK_HP;

    5: // Waiting to end product packaging Pallet_A

        #SSM.S.c1.start := "HMI KEY".PlantInfo.Product_Packaging_Done;

        #SSM.S.c1.set := 30;

        IF #SSM.S.c1.done THEN

            "DI MAIN P02".to_P01.Pallet_A_EnabledToRun := "DI MAIN P02".to_P01.Pallet_A_ReadyToEnd := FALSE;

            #SSM.S.stepd := "DI MAIN P01".to_P02.Pallet_A_Done AND NOT "HMI KEY".P00.GLB.F6_OM_RUN_DOWN_ON;

        END_IF;

END_CASE;

FB43 SEQ2 P02 : Packaging Pallet B

Network 1: Pre-Setting

;

Network 2: Define last step

#SSM(LAST_STEP := 5);

Network 3: Step Switching Mechanism (SSM)

CASE #SSM.S.stepact OF

    0: // Waiting for SEQ1 to start

        #SSM.S.stepd := "DI MAIN P01".to_P02.Pallet_B_Request AND "DI MAIN P02".M00.ReadyToStart AND #SSM.S.steps;

    1: // M202 Packaging Conveyor CmdExe_WP

        "DI OUT P02".Y2021.VLV_O.CmdExe_WP := "HMI KEY".P02.Y2021.F12_Enable_WP AND #SSM.S.stepa;

        "DI OUT P02".M202.DRV.CmdExe_WP := "HMI KEY".P02.M202.F12_Enable_WP AND ("DI OUT P02".Y2021.FEEDBACK_WP OR "E00 Y2021 After Pos");

        #SSM.S.stepd := "DI OUT P02".M202.FEEDBACK AND "E00 Y2021 After Pos" AND "DI OUT P02".Y2021.FEEDBACK_HP;

    2: // CV202 Packaging Fixing Unit CmdExe_WP

        IF #SSM.S.stepfc THEN

            "DI OUT P01".Pallet_B := "HMI KEY".PlantInfo.Pallet_B; // BLOCK MOVE

            "DI OUT P01".Pallet_B.Places := "HMI KEY".PlantInfo.Pallet_B.Layer_Data.PlacesOn_X * "HMI KEY".PlantInfo.Pallet_B.Layer_Data.PlacesOn_Y;

        ELSIF "E00 Y2022 at Pos" THEN

            "DI OUT P02".M202.DRV.CmdExe_WP := "DI OUT P02".CV202.VLV_OC.CmdExe_HP := FALSE;

            "DI OUT P02".CV202.VLV_OC.CmdExe_WP := "HMI KEY".P02.CV202.F12_Enable_WP;

            #SSM.S.stepd := "DI MAIN P02".to_P01.Pallet_B_EnabledToRun := NOT ("DI OUT P02".M202.FEEDBACK OR #SSM.S.steplo) AND "DI OUT P02".CV202.FEEDBACK_WP;

        END_IF;

    3: // Waiting for P01_to_P02 Pallet_B_Done

        IF "DI MAIN P01".to_P02.Pallet_B_Done THEN

            "DI OUT P02".CV202.VLV_OC.CmdExe_WP := FALSE;

            "DI OUT P02".CV202.VLV_OC.CmdExe_HP := "HMI KEY".P02.CV202.F11_Enable_HP;

            "DI OUT P02".Y2022.VLV_O.CmdExe_WP := "HMI KEY".P02.Y2022.F12_Enable_WP AND #SSM.S.stepa;

            "DI OUT P02".M202.DRV.CmdExe_WP := "HMI KEY".P02.M202.F12_Enable_WP AND ("DI OUT P02".Y2022.FEEDBACK_WP OR "E00 Y2022 After Pos");

            #SSM.S.stepd := "DI OUT P02".M202.FEEDBACK AND "E00 Y2022 After Pos";

        END_IF;

    4: // Query pallet after stopper Y2022

        #SSM.S.c1.start := TRUE;

        #SSM.S.c1.set := 30;

        "DI OUT P02".Y2022.VLV_O.CmdExe_WP := "DI OUT P02".M202.DRV.CmdExe_WP := NOT #SSM.S.c1.done;

        #SSM.S.stepd := "DI MAIN P02".to_P01.Pallet_B_ReadyToEnd := "DI OUT P02".M202.DRV.LampHP AND "DI OUT P02".Y2022.FEEDBACK_HP;

    5: // Waiting to end product packaging Pallet_B

        #SSM.S.c1.start := "HMI KEY".PlantInfo.Product_Packaging_Done;

        #SSM.S.c1.set := 30;

        IF #SSM.S.c1.done THEN

            "DI MAIN P02".to_P01.Pallet_B_EnabledToRun := "DI MAIN P02".to_P01.Pallet_B_ReadyToEnd := FALSE;

            #SSM.S.stepd := "DI MAIN P01".to_P02.Pallet_B_Done AND NOT "HMI KEY".P00.GLB.F6_OM_RUN_DOWN_ON;

        END_IF;

END_CASE;
