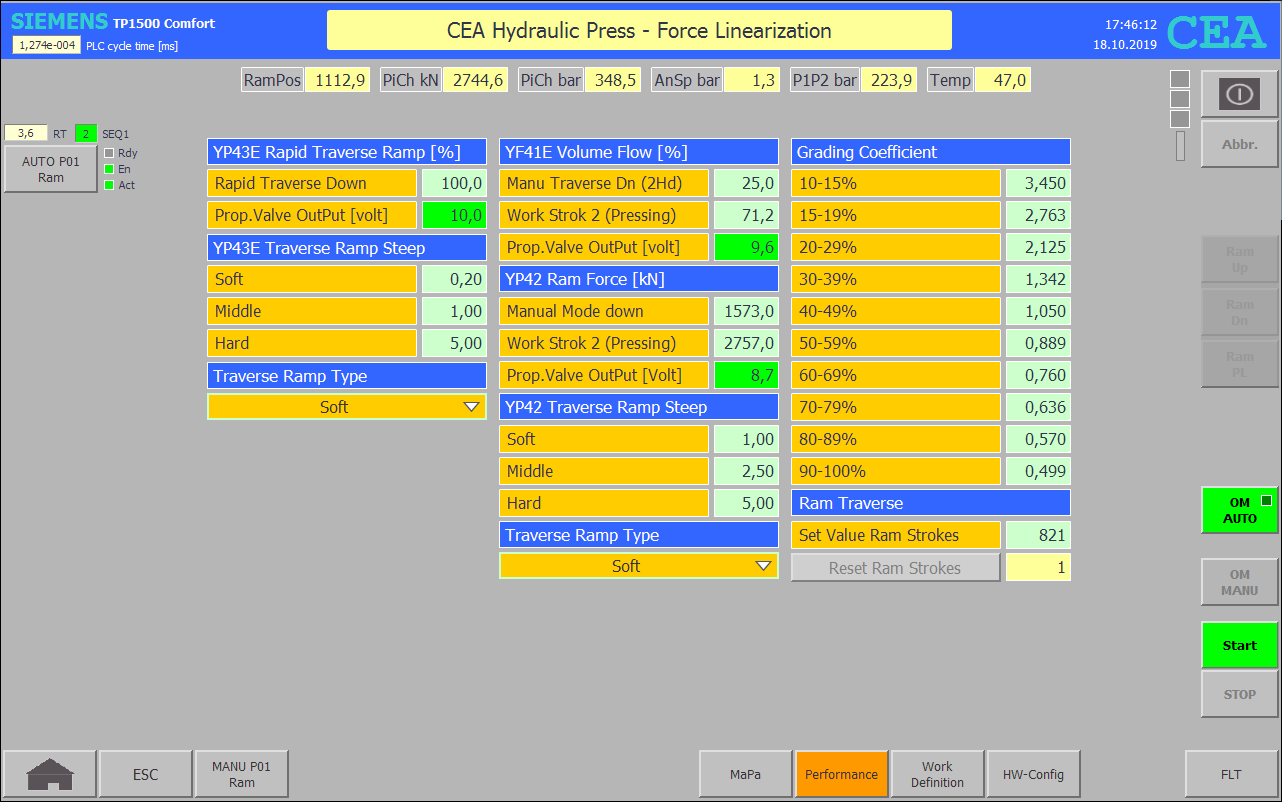

FC2 Linearization 0-100%







Netzwerk 1: Start measuring runtime (Start Cycle)



IF #SET_POINT = "DI OUT P01".MaPa.Max_Force_kN OR #SET_POINT > "DI OUT P01".MaPa.Max_Force_kN THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_10;;

RETURN;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 15.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_01;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 19.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_02;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 29.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_03;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 39.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_04;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 49.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_05;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 59.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_06;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 69.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_07;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 79.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_08;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 89.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_09;

ELSIF #SET_POINT * 100.0 / "DI OUT P01".MaPa.Max_Force_kN < 100.0 THEN

#OUT_PUT := #SET_POINT * "DI OUT P01".MaPa.Support.Grading_Coefficient_10;

END_IF;
