FB38 MAN P01 : CEA Hydraulic Press - manual Mode







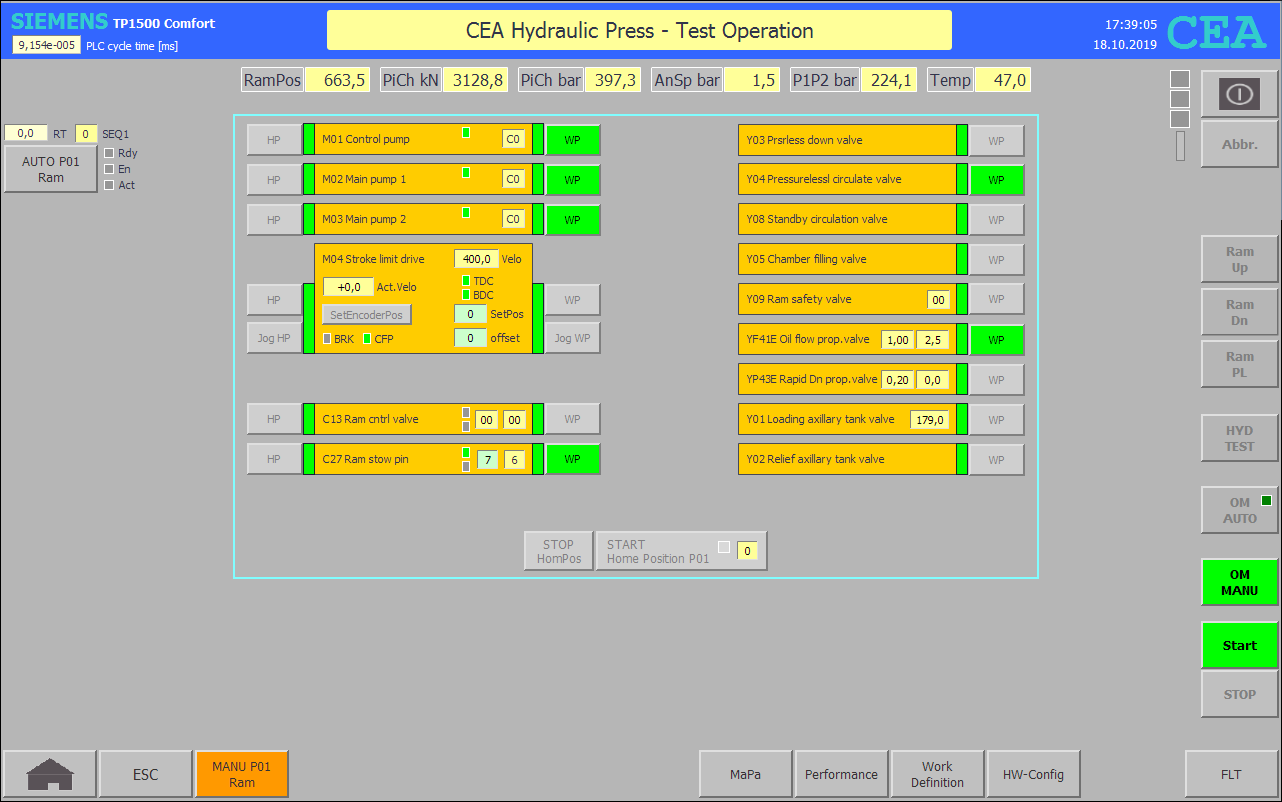

Netzwerk 3: Manual Mode



IF "M00 ManuCmpltMa run" THEN

// Manual mode 2Hd: ram down + pressing

IF "DI OUT P01".MaPa.Support.CmdExe_Ram_Dn AND NOT "DI OUT P01".MaPa.Support.BDC_reached

AND "DI OUT P01".MaPa.Set_Force_Pressing_kN > "DI OUT P01".P421_PEW_SCAL_kN.Support.Out_Scale THEN

"DI OUT P01".YF41E_PAW_VALU.Support.CmdExe_WP := TRUE;

"DI OUT P01".YP43E_PAW_VALU.Support.CmdExe_WP := FALSE;

"DI OUT P01".YF41E_PAW_RAMP.Support.Steep := 1.0;

"DI OUT P01".YF41E_PAW_RAMP.Support.Target := "DI OUT P01".MaPa.Set_VolFlow_Down_2Hd;

"DI OUT P01".YP43E_PAW_RAMP.Support.Target := 0.0;

IF "DI OUT P01".MaPa.Max_RRT_Pos > "DI OUT P01".LinearEncoder_Master.ActPos_Dint THEN

"M01 YP42 Linear CmdExe" := TRUE;

"ParallelismControl"(ENABLE := "M01 YP42 Linear CmdExe",

TOLERANCE := "DI OUT P01".MaPa.Set_ParaTolerance,

PARA_FAULT => "DI MAIN P01".SEQ1.FLT."3_FAULT_00_15".%X0);

END_IF;

// C13 WP, Y09 WP, Y04 WP, Y05 WP, Y08 WP, Y03 HP

"DI OUT P01".C13.CmdExe_HP := FALSE;

"DI OUT P01".C13.CmdExe_WP := "HMI KEY".P01.C13.F12_Enable_WP;

"DI OUT P01".Y09.CmdExe_WP := "HMI KEY".P01.Y09.F12_Enable_WP;

"DI OUT P01".Y04.CmdExe_WP := "HMI KEY".P01.Y04.F12_Enable_WP;

"DI OUT P01".Y08.CmdExe_WP := "HMI KEY".P01.Y08.F12_Enable_WP;

"DI OUT P01".Y05.CmdExe_WP := "HMI KEY".P01.Y05.F12_Enable_WP;

"DI OUT P01".Y03.CmdExe_WP := FALSE;

// Manual mode: 2Hd ram up

ELSIF "DI OUT P01".MaPa.Support.CmdExe_Ram_Up AND NOT "DI OUT P01".MaPa.Support.Slow_TDC_reached THEN

"DI OUT P01".YF41E_PAW_VALU.Support.CmdExe_WP := TRUE;

"DI OUT P01".YP43E_PAW_VALU.Support.CmdExe_WP := FALSE;

"DI OUT P01".YF41E_PAW_RAMP.Support.Steep := 1.0;

"DI OUT P01".YF41E_PAW_RAMP.Support.Target := "DI OUT P01".MaPa.Set_VolFlow_Up_2Hd;

"DI OUT P01".YP42_PAW_RAMP.Support.Target :=

"DI OUT P01".YP43E_PAW_RAMP.Support.Target := 0.0;

// C13 HP, Y09 WP, Y04 WP, Y05 HP, Y08 WP, Y03 HP

"DI OUT P01".C13.CmdExe_WP := FALSE;

"DI OUT P01".C13.CmdExe_HP := "HMI KEY".P01.C13.F11_Enable_HP;

"DI OUT P01".Y09.CmdExe_WP := "HMI KEY".P01.Y09.F12_Enable_WP;

"DI OUT P01".Y04.CmdExe_WP := "HMI KEY".P01.Y04.F12_Enable_WP;

"DI OUT P01".Y08.CmdExe_WP := "HMI KEY".P01.Y08.F12_Enable_WP;

"DI OUT P01".Y05.CmdExe_WP :=

"DI OUT P01".Y03.CmdExe_WP := FALSE;

// Manual mode: pressure less down

ELSIF "E01 PrsurLes EnblKs" AND "DI OUT P01".MaPa.Support.CmdExe_Ram_Dn_PL AND NOT "DI OUT P01".MaPa.Support.BDC_reached THEN

"DI OUT P01".YF41E_PAW_VALU.Support.CmdExe_WP := TRUE;

"DI OUT P01".YP43E_PAW_VALU.Support.CmdExe_WP := FALSE;

"DI OUT P01".YF41E_PAW_RAMP.Support.Steep := 0.1;

"DI OUT P01".YF41E_PAW_RAMP.Support.Target := "DI OUT P01".MaPa.Set_VolFlow_PrsrLess;

"DI OUT P01".YP42_PAW_RAMP.Support.Target := "DI OUT P01".MaPa.Mim_Pressure_bar;

"DI OUT P01".YP43E_PAW_RAMP.Support.Target := 0.0;

// C13 HP/WP, Y09 HP, Y04 WP, Y05 HP, Y08 HP, Y03 WP

"DI OUT P01".C13.CmdExe_WP :=

"DI OUT P01".C13.CmdExe_HP :=

"DI OUT P01".Y09.CmdExe_WP := FALSE;

"DI OUT P01".Y04.CmdExe_WP := "HMI KEY".P01.Y04.F12_Enable_WP;

"DI OUT P01".Y08.CmdExe_WP :=

"DI OUT P01".Y05.CmdExe_WP := FALSE;

"DI OUT P01".Y03.CmdExe_WP := "HMI KEY".P01.Y03.F12_Enable_WP;

END_IF;

END_IF;

// Halt moving up or down

IF #Support.RamHALT_Imp OR "DI MAIN GLB".TOF_ManuOff_Pulse.Q THEN

"DI OUT P01".C13.CmdExe_WP :=

"DI OUT P01".C13.CmdExe_HP :=

"DI OUT P01".Y09.CmdExe_WP :=

"DI OUT P01".Y03.CmdExe_WP :=

"DI OUT P01".Y04.CmdExe_WP :=

"DI OUT P01".Y08.CmdExe_WP :=

"DI OUT P01".Y05.CmdExe_WP := FALSE;

END_IF;
